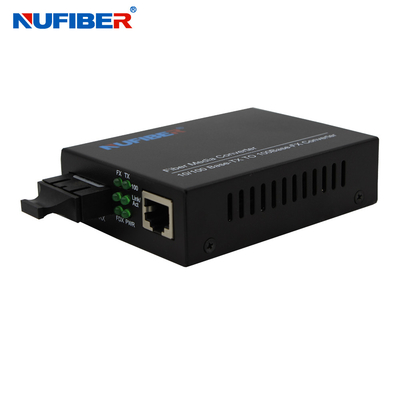

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter

Product Details:

Place of Origin: Shenzhen, China ( mainland)
Brand Name: NUFIBER
Certification: CE
Model Number: NF-C570S20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: Carton packaging, the products are packed in international standard. Each carton is lined with apolythene sheet, thus preventing the contents from dampness.
Delivery Time: 1-3 working days after payment
Payment Terms: T/T, Western Union, Credit card
Supply Ability: 10000 pairs per month
Get Best Price Contact Now

Detail Information

Fiber Type: SM Dual Fiber Fiber Interface: SC/ST/FC
Connector: RJ45 Port Transmission Rate: 10/100M
Distance: 20KM Wavelength: TRx1310nm
Warranty: 12 Months
High Light:

1310nm Fiber Optic Media Converter

,

Fiber Optic Media Converter 20km

,

Duplex SM Fiber Media Converter

Product Description

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter

Overview

The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

Key Features

1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
6. Auto MDI/MDI-X support on RJ45 port
7. Distances up to: 2 km Multimode, 120 km Single Mode
8. ST, SC, FC optical connectors
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
10. External power adapter

Applications

► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► 10/100 Mbps Ethernet Media Converter
► High Speed Computer Links

Technical Specifications

Parameters Specifications
Standards IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Data Transfer Rate 100Mbps: 148,800 pps
10Mbps: 14,880 pps
Wavelength Multi-mode: 850 nm or 1310nm
Single-mode: 1310 nm , 1550 nm
Transmission Distance

Fiber:
Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)
Single-mode: 25/40/60/100/120 km
UTP:

Cat. 3/4/5/6: 100 m

Port

One RJ45 port
One Fiber port (ST/SC/FC Optional, LC:SFP Module)

MDI/MDI-X Auto selection
LED Indicator PWR: Green Illuminated to indicate unit is operating under normal operation
TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received
FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received
100M: Green Illuminated when data packets are being transmitted at 100 Mbps
Power Supply Outside: 5 V DC 1 A
Built-in: 100 V to 240 V AC 50 Hz to 60 Hz
Operating Temp 0 °C to +70 °C
Storage Temp -20 °C to +80 °C
Storage Humidity 5% to 90% (non-condensing)
Dimensions 95 mm × 70 mm × 25 mm
Net Weight 0.165 kg


Product show
10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 0
10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 1
10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 2
10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 3

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 4


Connection Diagram

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 5
Shipping and Packing

10/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 610/100M Fiber Optic Media Converter Duplex SM 1310nm 20km SC Fiber Optic Converter 7
