10/100/1000M Fiber Media Converter Dual Fiber Single Mode 1310nm 20km SC
Product Details:
| Place of Origin: | Shenzhen, China ( mainland) |
| Brand Name: | Nufiber |
| Certification: | CE |
| Model Number: | NF-C2200LX20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
| Delivery Time: | within 1-3 working days after payment |
| Payment Terms: | T/T, Western Union, Credit card |
| Supply Ability: | 10000 pair per month |
|
Detail Information |
|||
| Fiber Type: | SM Dual Fiber | Fiber Interface: | SC/ST/FC |
|---|---|---|---|
| Connector: | RJ45 Port | Transmission Rate: | 10/100/1000M |
| Distance: | 20KM | Wavelength: | TRx1310nm |
| Warranty: | 12Months | ||
| High Light: | Dual Fiber media Converter 1310nm,SC Dual Fiber media Converter,Fiber Media Converter 20km |
||
Product Description
10/100/1000M Fiber Media Converter Simplex SM 1310nm/1550nm 20km SC
Key Features
1. 10/100/1000Mbps Ethernet
2. 10/100/1000 BASE-T/TX electrical port
3. 1000 BASE-SX/LX optical port
4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
5. Optical port supports 1000Mbps full duplex data
6. Automatic MDI/MDI-X crossover
7. Distances up to 2km for Multi mode;Up to 120km for Single mode
8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides
9. No in-field optical adjustments required
10. LED Indicators
Overview
The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Technical Parameter
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
| Optic Wavelength |
NF-C2000SX: 850nm NF-C2000LX20: 1310nm NF-C2000-SFP: N/A NF-C2000LX20A:TX:1310nm/RX:1550nm NF-C2000LX20B:TX:1550nm/RX:1310nm |
| Transmission Distance |
Multimode: 2km Single mode:10km~120km |
| Port |
Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
| Led Indicators |
Optical Link/Data Activity Electrical Link/Data Activity |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
|
Data
|
Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
| Power Supply |
External : 5V DC 2A Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity |
5% to 90% (non-condensing) MTBF: >100,000 hours |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |

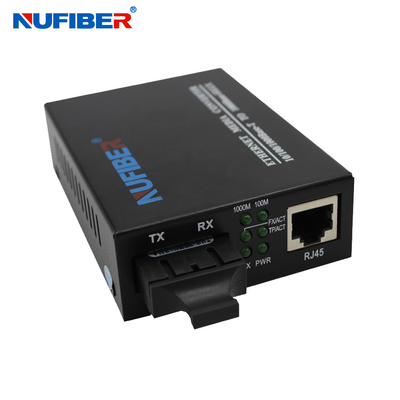

Product Show
Connection Diagram
Packaging and shipping
