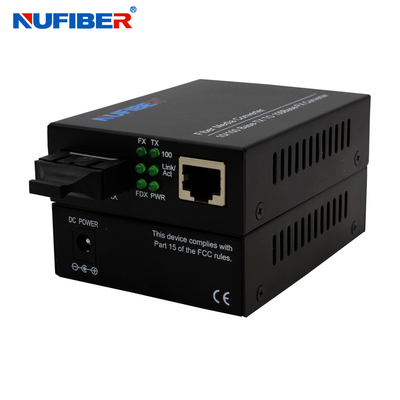

10/100M MM 2KM SC Dual Fiber Optical Media Converter

10/100M MM 2KM SC Dual Fiber Optical Media Converter

MOQ: 1 piece
Standard Packaging: Carton packaging, the products are packed in international standard. Each carton is lined with apolythene sheet, thus preventing the contents from dampness.
Delivery Period: 1-3 working days after payment
Payment Method: T/T, Western Union, Credit card
Supply Capacity: 10000 pairs per month
Detail Information
Place of Origin
Shenzhen, China ( mainland)
Brand Name
Nufiber
Certification
CE
Model Number
NF-C570C
Fiber Type:
MM Dual Fiber
Fiber Interface:
SC/ST/FC
Connector:
RJ45 Port
Transmission Rate:
10/100M
Distance:
2KM
Wavelength:
TRx1310nm
Warranty:
12 Months
High Light:

2KM Fiber Optical Media Converter

,

10/100M Fiber Optical Media Converter

,

MM SC Fiber Media Converter

Product Description

10/100M Fiber Optical Media Converter Dual Fiber MM 2KM SC (P/N:NF-C570C)





Overview

The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.

Key Features

1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5.Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
6. Auto MDI/MDI-X support on RJ45 port
7. Distances up to: 2 km Multimode, 120 km Single Mode
8. ST, SC, FC optical connectors
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
10. External power adapter


Applications

► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► 10/100 Mbps Ethernet Media Converter
► High Speed Computer Links

Technical Specifications



Parameters Specifications
Standards IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Wavelength Multi-mode: 850 nm or 1310nm
Single-mode: 1310 nm , 1550 nm
Transmission Distance

Fiber:
Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)
Single-mode: 25/40/60/100/120 km
UTP:
Cat. 3/4/5/6: 100 m

Port

One RJ45 port
One Fiber port (ST/SC/FC Optional, LC:SFP Module)

MDI/MDI-X Auto selection
MAC Address Table I K
Buffer Size 1Mbit
Flow Control Duplex:flow control ; Half duplex:back pressure
Time Delay Store-and-forward:9.6us,Straight-through:0.9us
BER <1/1000000000
Power Supply Outside: 5 V DC 1 A
Built-in: 100 V to 265V AC 50 Hz to 60 Hz
Operating Temp. 0 °C to +70 °C
Storage Temp. -20 °C to +80 °C
Relative Humidity 5% to 90% (non-condensing)
Dimensions 95 mm × 70 mm × 25 mm
Net Weight 0.165 kg


Product show
 10/100M MM 2KM SC Dual Fiber Optical Media Converter 010/100M MM 2KM SC Dual Fiber Optical Media Converter 110/100M MM 2KM SC Dual Fiber Optical Media Converter 210/100M MM 2KM SC Dual Fiber Optical Media Converter 3

10/100M MM 2KM SC Dual Fiber Optical Media Converter 4

10/100M MM 2KM SC Dual Fiber Optical Media Converter 5


Connection Diagram

10/100M MM 2KM SC Dual Fiber Optical Media Converter 6


Shipping and Packing
10/100M MM 2KM SC Dual Fiber Optical Media Converter 710/100M MM 2KM SC Dual Fiber Optical Media Converter 8
