| MOQ: | 1 piece |
| Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
| Delivery Period: | within 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pairs per month |
NF-C550-SFP 10/100M SFP Media Converter SFP to RJ45 Optic Converter
Overview
This Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. LED indicators are provided for confirming equipment operating status.
Key Features
1. Plug and play, high performance, Low power consumption
2. Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
3. Optical port supports 100 Mbps full duplex data
4. Automatic MDI/MDI-X crossover
5. Distances up to 120 km with optional SFPs
6. IEEE 802.3 compliant
7. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
8. 3 years warranty
Technical Parameter
| Parameters | Specifications |
| Standards | IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T) |
| Wavelength | Multi-mode: 850 nm Single-mode: 1310 nm, 1550 nm |
| Transmission Distance | Fiber: Multi-mode: 2km (fiber size: 50/125 μm) Single-mode: 20/40/60/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm) UTP:Cat. 5e or Cat. 6: 100 m |
| Port | One RJ45 port, One SFP socket |
| MDI/MDI-X | Auto selection |
| LED Indicator | LED status indicators for rapidly ascertaining the operating status of the media converter and the link |
| Power Supply | Outside: 5 V DC 1 A Built-in: 100 V to 240 V AC 50 Hz to 60 Hz |
| Operating Temp | 0 °C to 50 °C |
| Storage Temp | -20 °C to 70 °C |
| Storage Humidity | 5% to 95% (non-condensing) |

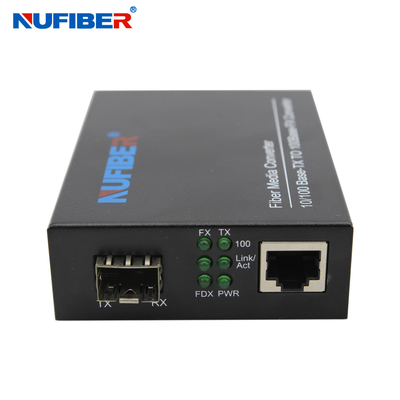

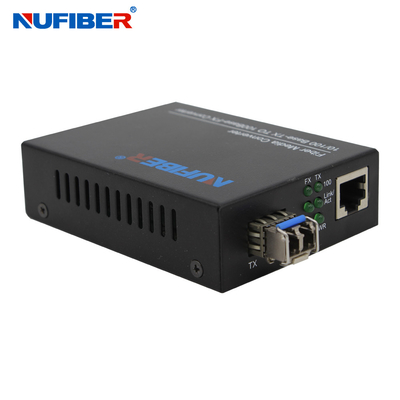

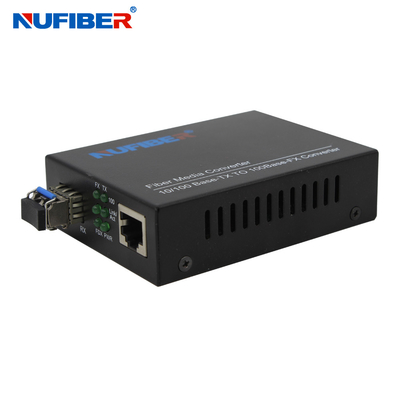

Products Show
Connection Diagram
Packaging and shipping
|
|
