Product Details:

Place of Origin: Shenzhen, China ( mainland)
Brand Name: Nufiber
Certification: CE
Model Number: GM168MM-C2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: Carton packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventing the cartons from dampness
Delivery Time: 1-3 working days after payment
Payment Terms: T/T, Western Union, credit card
Supply Ability: 10000 pairs per month
Get Best Price Contact Now

Detail Information

Fiber Type: MM Duplex Distance: 2km
Interface: RS232/422/485 Fiber Connector: SC
Warranty: 12Months Material: Iron Case
Power Supply: 9-40V Dimension: 100mm*69mm*22mm
Working Temperature: 0~50 ℃ Wavelength: 1310nm
High Light:

SC RS232 To Fiber Optic Converter

,

1310nm RS232 To Fiber Optic Converter

,

2KM RS422 To Fiber Optic Converter

Product Description

GM168MM-C2 Fiber Modem RS485/422/232 to Fiber Converter MM 1310nm 2KM SC Serial to Fiber Converter



Function and Characteristic

a) Support RS-232/RS-485/RS-422 interface
b) Asynchronous, point to point, rate up to 120Kbps
c) Support 9V~40V DC Volt input, consumption 2W
d) 1500W surge protection, 15KV static protection
e) RS-485/422 port support 32 node ( can choice hand-tailor 128 Node)
f) Working wavelength: 1310nm
g) Auto test signal rate, zero delay auto transmit

Performance guideline

Interface: support EIARS-232, 485, 422 standard
Rate: 0-500Kbps
Transmit distance: RS-232 port 15m, RS-485/422 port 1500m, optical port multi-mode 2KM, single-mode 20KM
Working environment: 0℃ to 60℃

Appearance guideline

Interface type: 8 bit terminal block, multi-mode choice ST/SC/FC interface, single-mode choice FC/SC/ST interface
L*W*H: 100mm*69mm*22mm
Shell: Iron
Color: White
Weight: 230g

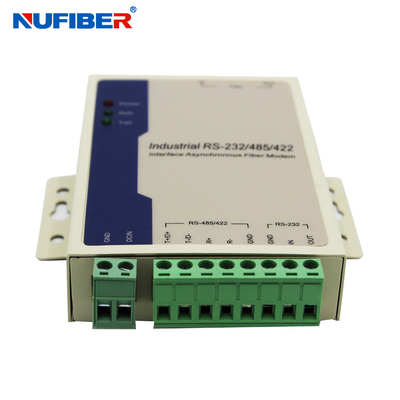

Pin define

Power interface
GND --------- Ground
DCIN --------- 9-40V input
Optical fiber interface
IN --------- Optical fiber input
OUT --------- Optical fiber output
RS-485/422 port
T+/D+ --------- RS-422 Send +/ RS-485 +
T-/D- --------- RS-422 Send -/ RS-485-
R+ --------- RS-422 Received +
R- -------- RS-422 Received –
GND --------- Ground
RS-232 port
IN --------- RS-232 input
OUT --------- RS-232 output
GND --------- Ground


Overview

Model 168 is a sort of more function and economy RS-232/485/422 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the scurviness environment.


Indicator light explain

Power: Power indication
RxD: Optical fiber interface receive indication
TxD: Optical fiber interface send indication

Applications
MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 0

Products
 MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 1MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 2MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 3MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 4MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 5

MM 1310nm 2KM SC RS485 RS422 RS232 To Fiber Optic Converter 6

Ordering information


Model No.


Specification


GM168MM-C2


RS232/485/422 TO FIBER,Multimode dual
fiber,2KM,SC



GM168SM-C20


RS232/485/422 TO FIBER,Single mode dual fiber,20KM,SC


GM168SM-C40


RS232/485/422 TO FIBER,Single mode dual fiber,40KM,SC


GM168SM-C20/B1B2


RS232/485/422 TO FIBER,Single mode single fiber,20KM,SC


GM168SM-C40/B1B2


RS232/485/422 TO FIBER,Single mode single fiber,40KM,SC
