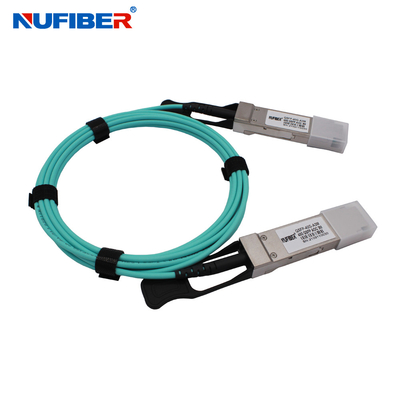

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center

MOQ: 1pcs
Standard Packaging: Standard Export Package
Delivery Period: 1-3 working days
Payment Method: T/T, Western Union
Supply Capacity: 5,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NUFIBER
Certification
CE FCC Rohs
Model Number
QSFP-QSFP-AxM
Product Name:
40G QSFP+ To 40G QSFP+ AOC
Connector Type:
QSFP+ To QSFP+
Max Data Rate:
40Gbps
Cable Length:
Customized
Temperature:
0 To 70°C
Optical:
VCSEL Laser
Warranty:
3 Years
Highlight:

40G QSFP28 AOC Cable

,

5m Active Fiber Optic Cable

,

5m QSFP28 AOC Cable

Product Description

40G QSFP28 AOC Active Opitcal Cable with 3m and 5m for Data Center​



Description:

The QSFP+ active optic cables are a high performance, low power consumption, long reach inter connect solution supporting Infini Band QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.



Key Features:

Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor


Application:



Infiniband QDR/DDR/SDR
Data center
40G Ethernet
4G/8G/10G Fibre Channel



Standard:

(1)Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4;

(2)Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR;

(3)Compliant with QSFP MSA(SFF-8436);

(4)Compliant with SFP MSA(SFF-8431);

(5)RoHS Compliant:lead-free.



Products show:





Factory Show:

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center 0



Packing & Shipping:

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center 1

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center 2



FAQ:

40G QSFP28 AOC Cable , 3m 5m Active Fiber Optic Cable For Data Center 3
