| MOQ: | 1 piece |
| Standard Packaging: | 10pcs per carton, carton size: 452*372*297mm |
| Delivery Period: | 1-3 work days |
| Payment Method: | T/T, Western Union,Credit Card. |
| Supply Capacity: | 2000 pcs per month |
NF-1804R is a new active network extender device that based on EOC technology. In practical project, need to four pieces NF-1801 work with one piece NF-1804R to extend Ethernet signal through UTP cable, telephone line, coaxial cable and so on, max transmission distance up to 1500m, max communication rate up to 100Mbps. Superior isolation and anti-interference. Widely used in Security monitoring, conferencing systems and intelligent building.
Key Features
|
Power: 12VDC |
|
Transmission medium: compatible with twisted pair cable,coaxial cable and even ordinary paired cable |
|
Extend distance: max extend to 1500m |
|
Standard: in line with IEEE802.3XILIE 10/100Base-TX and 100Base-FX Ethernet standard agreement |
|
Design: compact, support MIT specification, installation more easier |
|
Operation: easy installation, plug& play |
| Model No. |
NF-1804R |
| Transmission medium | Coaxial cable, twisted-pair |
| Connection port | RJ45*1, BNC*4 |
| Transmission distance/speed | Cable length < 400Meter——92Mbps; Cable length < 1000Meter——74Mbps; Cable length < 1500Meter——30Mbps; |
| M/S setting | Defaults to Master mode |
| Power supply | 12V DC, 180Ma |
| Max power consumption | 2.2W |
| Working Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Relative humidity | 5%~95%, Non-condensing |
| Dimension | 130*68*32mm |
| Weight | 0.24Kg |

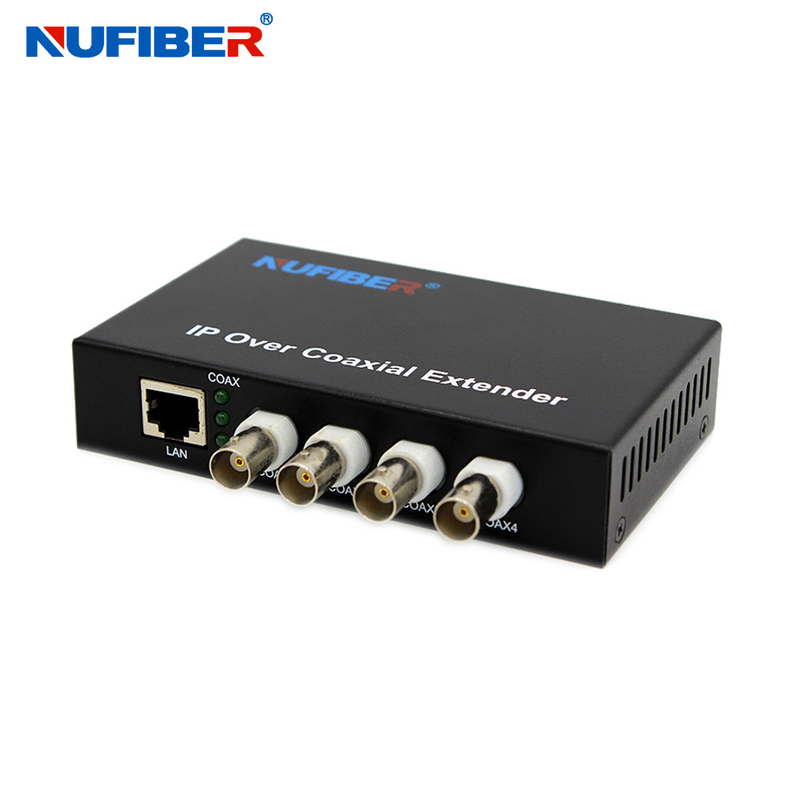

Products Show
Connection Diagram
Shipping
FAQ
Welcome to send us your inquiry,your any question will be response 24/7.OEM:accept,Customization:support.
|
|
