| MOQ: | 1 pair |
| Standard Packaging: | 10pair/ carton standard export packing |
| Delivery Period: | 1-3 days |
| Payment Method: | Western Union, T/T, L/C |
| Supply Capacity: | 5000 pcs per month |
NF-16V-T/R-F20 Fiber Coaxial Video Converter 16BNC Fiber Video Transmitter and Receiver for CCTV
Description
NuFiberRSeries fiber video multiplexers transmit 16-channel of broadcast quality video using 8-bit digitally encoding and decoding over one multimode or single-mode optical fiber. The modules are directly compatible with NTSC, PAL or SECAM CCTV camera systems. These multiplexer units are typically used in applications that have fixed cameras.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. A typical installation utilizes a 16-channel transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a 16-channel receiver unit at the monitoring end of the link. Devices are available for either standalone or rack mount installation. The units incorporate LED indicators for monitoring the power and video operating status.
Key Features
▪ 8-Bit Uncompressed Video Transmission
▪ NTSC, PAL or SECAM Video Standards
▪ Transmit up to 30km without Optical Attenuation
▪ Wide Optical Dynamic Range
▪ No EMI, RFI, Cross Talk and Video Distortion
▪ Adjustment-free Operation
▪ LED indicators Instantly Monitoring System Performance
▪ Standalone or Rack Mount
Specifications
| Video | |
| Video input/output impedance | BNC 75 Ω |
| Number of Channels | 16 Channels Video |
| Video input | 1 volt pk-pk (75 ohms) |
| Bandwidth | 5 Hz - 8 MHz |
| Bit Resolution | 8-Bit Digital Transmission |
| Differential Gain | < 1.5% |
| Differential Phase | < 1.5 ° |
| Tilt | < 5% |
| Signal-to-Noise Ratio(SNR) | > 67 dB |
| • Data | |
| Data Format | RS485 |
| Bit Error Rate | 10E-9 |
| • Electrical & Mechanical | |
| Input Power Requirements | DC5V @ 2A |
| Power Adapter | AC 100V~240V |
| Dimensions | 485*155*43mm |
| • Environmental | |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -20°C ~ +80°C |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| MTBF | >100,000 hours |

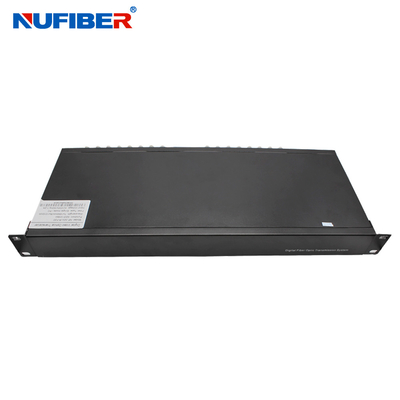

Products Show
Connection Diagram
Packing & Shipping
|
|
