Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case

MOQ: 1 piece
Standard Packaging: carton packaging, the products are packed in international standard. Each carton is lined with a polythene sheet , thus preventing the carton from dampness.
Delivery Period: 1-3 waorking days after payment
Payment Method: T/T, Western Union, Credit card
Supply Capacity: 10000 pieces per month
Detail Information
Place of Origin
Shenzhen, China ( Mainland)
Brand Name
Nufiber
Certification
CE
Model Number
NF-R1400D-2U
Shell Material:
Iron
Power Adapter:
Double Power Adapter
Applicaton:
Centralized Network Management
Dimensions:
429mm* 230mm*90mm
External Width:
19''
Highlight:

Iron 19 Inch Rack Mount Chassis

,

14 Slots 2u Rackmount Server Case

,

Iron Shell 2u Rackmount Server Case

Product Description

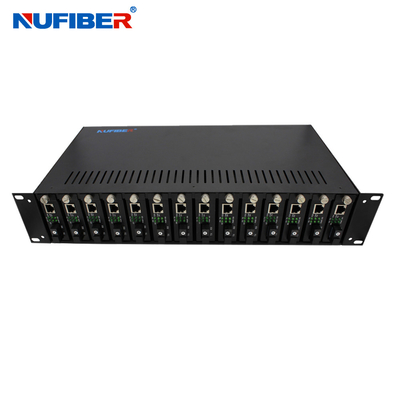

14 slots 19'' 2U Rack Mount Chassis for standalone Media Converter NF-R1400D-2U



Overview



The 2U-Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 14 media conversion modules. In addition to the internal power supply, a back up supply is available as an optional extra. The power of the Rack can be supplied by the type of single power or dual power. Adopting dual power supply, the load of each power can be reduced and the life of the power would extend. When one power supply is at fault, the other one can still work independently. It would enhance the reliability of the RACK.



Features



1. Supplying the Converters or Powers to be plugged and played.

2. 14 slots for media converter module

3. Auto-identify MDI/MDIX

4. Full/half duplex auto negotiation

5. Low power loss and good heat dissipation

6.Stable performance, large capacity of power supply, ease for management and maintenance

7. 2U high: 19-inch standard design



Technical parameters



Shell Material Iron
Capacity 14 slots
Power

Input: AC 100 ~ 260V, 50~60HZ

Output: DC 5V 12A

Power protection protection from over voltage, over current and short circuit
Operating Temp 0 °C to +70°C
Storage Temp -20 °C to +80 °C
Relative Humidity 5%~95% ( no condensing )
Dimensions 429mm* 230mm*90mm





Products show

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case 0

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case 1

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case 2

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case 3



Shipping

Iron Shell 19 Inch Rack Mount Chassis , 14 Slots 2u Rackmount Server Case 4
