| MOQ: | 1 piece |
| Standard Packaging: | Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness |
| Delivery Period: | within 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pairs per month |

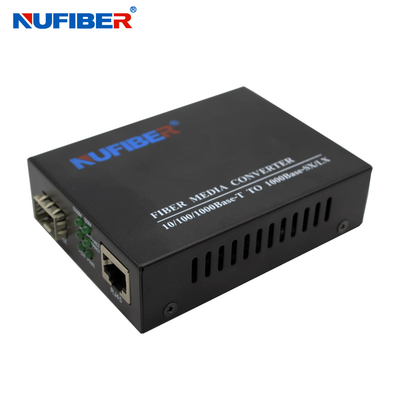

10/100/1000Mbps SFP Fiber Media Converter 10/100/1000Base-TX RJ45 Port to 1000Base-FX SFP Slot NF-C2200-SFP
Overview
This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 120 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.
Key Features
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Technical Parameter
| Parameters | Specifications |
| Standards | IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T |
| Wavelength | Multi-mode: 850 nm Single-mode: 1310 nm, 1550 nm |
| Transmission Distance |
Fiber: Cat. 5e or Cat. 6: 100 m |
| Port | One RJ45 port, One SFP Socket |
| MDI/MDI-X | Auto selection |
| LED Indicator | PWR: Illuminated for normal operation ALM: Illuminated when failure occurs on fiber or copper link LNK/ACT: Fiber link – Illuminated when receiving link pulses from compliant devices, Flashing when data packets are being transmitted/ received |
| Power Supply | Outside: 5V DC 2 A Built-in: 100 V to 240 V AC 50Hz to 60 Hz |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Storage Humidity | 5% to 90% (non-condensing) |
Connection Diagram
Products show
Packaging and shipping
|
|
