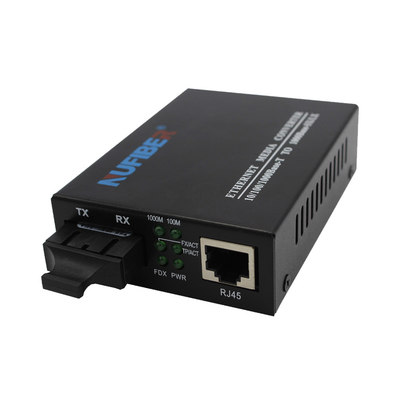

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter

MOQ: 1 piece
Standard Packaging: Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Delivery Period: within 1-3 working days after payment
Payment Method: T/T, Western Union, Credit card
Supply Capacity: 10000 pair per month
Detail Information
Place of Origin
Shenzhen, China ( mainland)
Brand Name
Nufiber
Certification
CE
Model Number
NF-C2200SX
Fiber Type:
MM Dual Fiber
Fiber Interface:
SC/ST/FC
Connector:
RJ45 Port
Transmission Rate:
10/100/1000M
Distance:
550m
Wavelength:
TRx850nm
Warranty:
3 Years
Highlight:

1000Base TX FX Media Converter

,

Multimode TX FX Media Converter

,

TX FX Gigabit Ethernet Media Converter

Product Description

10/100/1000Mbps Fiber Media Converter 10/100/1000Base-TX to 1000Base-FX Multi-Mode Dual Fiber SC 550m NF-C2200SX



Overview



The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.



Key Features



1. 10/100/1000Mbps Ethernet

2. 10/100/1000 BASE-T/TX electrical port

3. 1000 BASE-SX/LX optical port

4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.

5. Optical port supports 1000Mbps full duplex data

6. Automatic MDI/MDI-X crossover

7. Distances up to 2km for Multi mode;Up to 120km for Single mode

8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides

9. No in-field optical adjustments required

10.LED Indicators



Applications



1. Access Control Systems

2. Building and Environmental Control Systems

3. Tamper Switch

4. 10/100/1000 Mbps Ethernet Media Converter

5. High Speed Computer Links



Technical Parameter



Parameters Specifications
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength

NF-C2000SX: 850nm

NF-C2000LX20: 1310nm

NF-C2000-SFP: N/A

NF-C2000LX20A:TX:1310nm/RX:1550nm

NF-C2000LX20B:TX:1550nm/RX:1310nm

Transmission Distance

Multimode: 2km

Single mode:10km~120km

Port

Optical: 2 Fibers (SC/ST/FC Optional)

Power: Terminal Block

Electrical: RJ45

Led Indicators

Optical Link/Data Activity

Electrical Link/Data Activity

MDI/MDI-X Auto selection
Mac address table 4K
Memory buffer 256K

Data



Data Interface: Ethernet

Data Rate:10/100/1000 Mbps

Power Supply

External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Power Consumption : ≤5W

Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Relative Humidity

5% to 90% (non-condensing)

MTBF: >100,000 hours

Dimensions 95mm * 70 mm * 25mm
Net Weight 0.165 kg
Emissions FCC , Class A, RoHS, CE Mark


Connection Diagram

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 0Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 1



Products show

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 2Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 3

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 4

Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 5



Packaging and shipping



Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 6Multimode 10 100 1000Base TX FX Media Converter Gigabit Ethernet Media Converter 7
