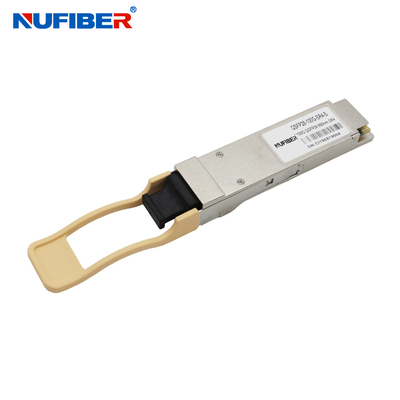

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4

MOQ: 1 piece
Standard Packaging: 4pcs/plastic plate,
Delivery Period: Within 1-3 work days
Payment Method: L/C, T/T, Western Union,Credit Card
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC Rohs
Model Number
QSFP28-100G-PSM4
Data Rate:
100Gb/s
Wavelength:
1310nm
Distance:
500m
Connector:
MPO
DDM:
Support
Fiber Type:
SMF
Power Supply:
3.3V
Working Temperature:
0~70℃
Warranty:
3 Years
Compatibility:
Huawei, Cisco, HP, H3C...
Manufacturer:
Yes
High Light:

QSFP28 100G Module MPO

,

500M 100G Module MPO

,

QSFP28-100G-PSM4

Product Description

(QSFP28-100G-PSM4)

QSFP28-100G-PSM4 100Gb/s QSFP28 Transceiver MPO 500M SMF 1310nm compatible Cisco huawei H3c HP

Hot Pluggable, MTP/MPO Connector, 1310nm, DFB&PIN, Singlemode



Features

  • 4 independent full-duplex channels
  • Up to 27.95Gbps per channel bandwidth
  • Aggregate bandwidth of > 100Gbps
  • MTP/MPO optical connector
  • QSFP28 MSA compliant
  • Power Consumption<3.5W
  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
  • Digital diagnostic capabilities
  • Single +3.3V power supply operating
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part



Applications

  • Local Area Network (LAN)
  • Wide Area Network (WAN)
  • Ethernet switches and router applications



Optical Parameters



Parameter Symbol Min Typ Max Unit Note
Data Rate per Channel   - 25.78125   Gbps
Power Consumption   - 2.5 3.5 W
Supply Current Icc   0.75 1.0 A
Control I/O Voltage-High VIH 2.0   Vcc V
Control I/O Voltage-Low VIL 0   0.7 V
Inter-Channel Skew TSK     150 Ps
RESETL Duration     10   Us
RESETL De-assert time       100 ms
Power On Time       100 ms
Transmitter
Single Ended Output Voltage Tolerance   0.3   4 V 1
Common mode Voltage Tolerance   15     mV
Transmit Input Diff Voltage VI 120   1200 mV
Transmit Input Diff Impedance ZIN 80 100 120
Data Dependent Input Jitter DDJ     0.1 UI
Data Input Total Jitter TJ     0.28 UI
Receiver
Single Ended Output Voltage Tolerance   0.3   4 V
Rx Output Diff Voltage Vo   600 800 mV
Rx Output Rise and Fall Voltage Tr/Tf     35 ps 1
Total Jitter TJ     0.7 UI
Deterministic Jitter DJ     0.42 UI



Ordering information



100G QSFP28
QSFP28-100G-SR4 103.1 Gbp 850nm MMF MTP/MPO 100m VCSEL 850nm
QSFP28-100G-LR4 103.1 Gbp 1310nm SMF LC duplex 10km DML 1310nm
QSFP28-100G-ER4 103.1Gbps 1310nm SMF LC Duplex 25km-40km 4x EML
QSFP28-100G-PSM4 103.1 Gbp 1310nm SMF MTP/MPO 500m 4x DFB
QSFP28-100G-LR-S 103.1 Gbp 1310nm SMF MTP/MPO 2km 4x DFB
QSFP28-100G-CWDM4-S 103.1 Gbp CWDM SMF LC duplex 2km DML CWDM
1271~1331nm
QSFP28-100G-CWDM4-L 103.1 Gbp CWDM SMF LC duplex 10km DML CWDM
1271~1331nm



Products Show

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 0500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 1500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 2500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 3500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 4

Applications:

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 5

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 6



Packaging & Shipping

500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 7





500M QSFP28 100G Module MPO 1310nm Hot Pluggable QSFP28-100G-PSM4 8
