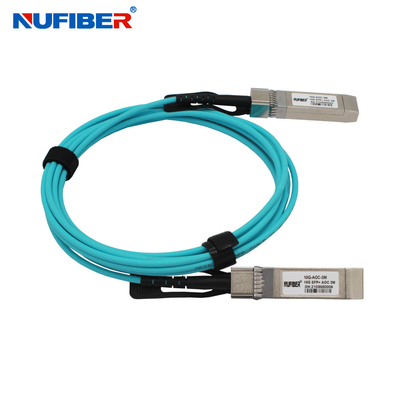

SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S

SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S

MOQ: 1 piece
Standard Packaging: 1 piece cable be packed into 1 box,
Delivery Period: 2~3 days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE, RoHS
Model Number
SFP-10G-AOCXM
Data Rate:
10Gb/s
Connector Type:
SFP+ To SFP+ AOC
Length:
1m/3m/5m/7m/10m/15m
Material:
Copper Cable
Application:
FTTH FTTB FTTX Network
Wire AWG:
AWG 30 As Default
Power Supply:
3.3V
Work Temp.:
0~70℃
Manufacturer:
YES
Warranty:
3 Years
Highlight:

SFP+ To SFP+ Active Optical Cable

,

SFP+ Active Optical Cable 15m

,

Active Optical Cable 10Gb/S

Product Description

High Speed 10Gb/s SFP+ Active Optical Cable 1m SFP+ AOC Ethernet Optical Fiber Cable





Description

Nufiber’s high speed SFP+ Active Optical Cable (AOC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a optical cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.



Key Features

  • Hot pluggable
  • Bit rate support from 1G to 11.3Gbps
  • Pre-terminated twin axial cable / fiber cable
  • Operating environment temperature 0 ~ 70℃
  • Low power consumption
  • SFP+ housing with enhanced EMI shielding
  • Single 3.3V power supply
  • Programmable EEPROM for serial identification



Application

  • 10G Ethernet
  • Applicable to 1G Ethernet
  • 8G Fiber Channel
  • Applicable to 4G / 2G / 1G Fiber Channel
  • 10G Fiber Channel over Ethernet
  • 1X QDR Infiniband
  • Applicable to 1X DDR / 1x SDR Infiniband
  • High capacity IO with SFP+ interface
  • Data center and in-rack connection

Technical Parameter



Parameter Symbol Min Max Unit
Storage Temperature Ts -40 +85 °C
Operating Case Temperature Tc -40 +85 °C
Operating Humidity RH   85 %
Supply Voltage Vcc -0.5 3.6 V














Parameter Symbol Min Max Unit
Operating Case Temperature Tc 0 +70 °C
Supply Voltage Vcc 3.1 3.5 V
Bit Rate BR 1 11.3 GBd














Mechanical Drawing



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 0



Ordering Information

Part Number Product Description Fiber Spec.
AOC-SFP-10G-CU1M 10G SFP+ Active Optical Cable 1Meter OM2or OM3
AOC-SFP-10G-CU3M 10G SFP+ Active Optical Cable 3Meters OM2or OM3
AOC-SFP-10G-CU5M 10G SFP+ Active Optical Cable 5Meters OM2or OM3
AOC-SFP-10G-CU7M 10G SFP+ Active Optical Cable 7Meters OM2or OM3
AOC-SFP-10G-CU10M 10G SFP+ Active Optical Cable 10Meters OM2or OM3
AOC-SFP-10G-CU15M 10G SFP+ Active Optical Cable 15Meters OM2or OM3
AOC-SFP-10G-CU20M 10G SFP+ Active Optical Cable 20Meters OM2or OM3
AOC-SFP-10G-CU25M 10G SFP+ Active Optical Cable 25Meters OM2or OM3
AOC-SFP-10G-CU30M 10G SFP+ Active Optical Cable 30Meters OM3
AOC-SFP-10G-CU50M 10G SFP+ Active Optical Cable 50Meters OM3
AOC-SFP-10G-CU100M 10G SFP+ Active Optical Cable 100Meters OM3

















Product Show



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 1



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 2



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 3



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 4



Packaing & Shipping



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 5



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 6

Factory Show



SFP+ To SFP+ Active Optical Cable 1-15m Customized High Speed 10Gb/S 7
