| MOQ: | 1 piece |
| Standard Packaging: | Carton packaging, the products are packed in international standard. Each carton is lined with apolythene sheet, thus preventing the contents from dampness. |
| Delivery Period: | 1-3 working days after payment |
| Payment Method: | T/T, Western Union, Credit card |
| Supply Capacity: | 10000 pairs per month |
10G SFP Media Converter 1G/2.5G/10G SFP to 100M/1000M/2.5G/10G Converter
Overview
The 10G media converter is a photoelectric converter that converts Ethernet electrical signals and photoelectric signals. It can convert short-distance 10GBase-TX twisted pair electrical signals and long-distance 10GBase-FX optical signals to each other. Different types of optical modules can be selected as needed, and the seamless connection between the optical signals of the Ethernet and the electrical signals. It not only can extend the transmission distance, but also has many advantages such as good data confidentiality, stable operation and easy maintenance.
Key Features
Adopt high-performance Realtek chip to achieve non-blocking transmission switching performance and ensure higher security and stability of data transmission;
Support Ethernet port 10Gbase－Tto10Gbase-SR/LR/ER/ZR;
The fiber port supports 3R function (equalization amplification, clock extraction, integer regeneration), and the data transmission jitter is small;
Transparent transmission of data with small delay;
Supports 850, 1310, 1550nm and ITU T specified CWDM/DWDM wavelengths;
Support for super long frames;
Support DMI function of optical module;
Support Loopback and return to functional testing;
Support SFP+/XFP different interface optical modules;
Support 5-12V wide voltage power supply;
Support built-in power supply enclosure;
Support centralized power supply management of racks;
Support external power supply;
Applications
► Access Control Systems
► Building and Environmental Control Systems
► Tamper Switch
► High Speed Computer Links
Technical Specifications
| Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 10GBase-SX/LX |
IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Ethernet Port |
Connector: RJ45 Data Rate: 100/1000/10000M Distance: 100m UTP Type: UTP-5E or higher level |
|
| Fiber Port |
Connector: SFP+ Data Rate: 10Gbps Fiber wavelength: 850nm / 1310nm / 1490nm / 1550nm Fiber type: single mode 9/125μm, multimode 50/125μm, 62.5/125μm Distance: 550m～100km |
|
| Performance |
Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 1Mbit Transmission mode: full-duplex / half-duplex adaptive Time Delay: ＜20μs |
|
| Power |
Power type: external power supply Input Voltage: AC100V～240V 50/60Hz power connector: DC socket Working Voltage: 5V4A&12V Power Consumption: 0.75W～3W |
|
| Environment |
Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-95% ( no condensation) |
|
| Physical Characteristics |
Dimension: 117×85×21mm Weight: 0.1kg (external) body Color: Metal, Black |
|
| Ethernet Port |
Connector: RJ45 Data Rate: 100/1000/10000M Distance: 100m UTP Type: UTP-5E or higher level |
|
| Fiber Port |
Connector: SFP+ Data Rate: 10Gbps Fiber wavelength: 850nm / 1310nm / 1490nm / 1550nm Fiber type: single mode 9/125μm, multimode 50/125μm, 62.5/125μm Distance: 550m～100km |
|
| Performance |
Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 1Mbit Transmission mode: full-duplex / half-duplex adaptive Time Delay: ＜20μs |
|
| Power |
Power type: external power supply Input Voltage: AC100V～240V 50/60Hz power connector: DC socket Working Voltage: 5V4A&12V Power Consumption: 0.75W～3W |
|
| Environment |
Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-95% ( no condensation) |
|

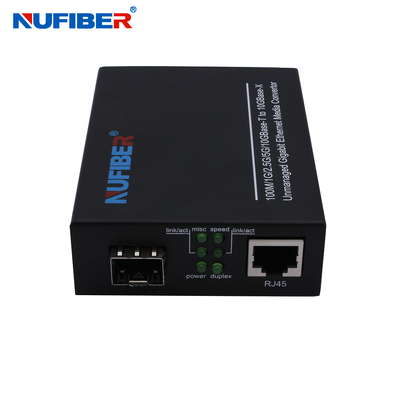

Product show
Connection Diagram
Shipping and Packing
|
|
