Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch

MOQ: 1 piece
Standard Packaging: 1 piece/packing box with spongy filler, 20pcs per standard export carton
Delivery Period: 1~2 work days for sample order
Payment Method: Western Union, T/T, L/C
Supply Capacity: 1000 pcs per Month
Detail Information
Place of Origin
China
Brand Name
NUFIBER
Certification
CE FCC Rohs
Model Number
NF6212GM-SFP
Product Name:
Managed Industrial Switch
Data Rate:
10/100/1000Mbps
Fiber Port:
SFP Socked
Working Temp.:
-40 ~ +85℃
Function:
SNMP, Telnet, WEB Managed
Installation:
DIN-rail Type
Protection Grade:
IP44
Ports:
12x10/100/1000Base RJ45 Ports+2x1000M SFP
OEM:
Accepted
Power Supply:
DC12~47V (POE: DC48~57V)
Product Description

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch


Overview

NuFiber's NF6212GM-SFP series is the 10/100/1000Mbps managed industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Features

  • 12 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000Mbps SFP fiber ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c
  • Intelligent power consumption detection and classification
  • SW-Ring ring network patent technology (Fault recovery time<20ms)
  • IGMP Snooping, GMRP and static IGMP
  • VLAN,PVLAN, Port trunking, rate control, control broadcast domain
  • IEEE802.1p_QOS
  • SNMP, Telnet, WEB
  • SSH,SSL,ACL, automatic MAC address bounding
  • IEEE 802.1d(STP),IEEE 802.1w(RSTP),IEEE 802.1s(MSTP)
  • Support port mirroring
  • Alarming: support ARP listening, power down, and ring-alarm
  • Jumbo frames support up to 16kb
  • Support link monitoring


Technical Specification

Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (2F+12TP)
Model No. NF6212GM-SFP
Port

2 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

12x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

Input voltage: DC9-36V

No-load power consumption: 5W

Reverse polarity protection: support

Environment

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4

Safety

CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP44

Dimension:158 x 114.8 x 60mm

Mounting method:Din-rail mounting

Warranty Replacement within 1 year;

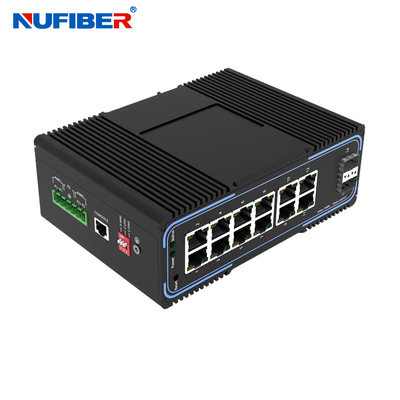

Product Picture

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 0

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 1

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 2

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 3

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 4


Connection diagram:

Support RING Network:

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 5

Factory Show


Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 6

Packing&Shipping

Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 7
Managed Gigabit Fiber Ethernet Switch 12 UTP Port to 2 SFP Ports Industrial Din Rail Mount Telnet Switch 8



Welcome to send us inquiry for this products.
