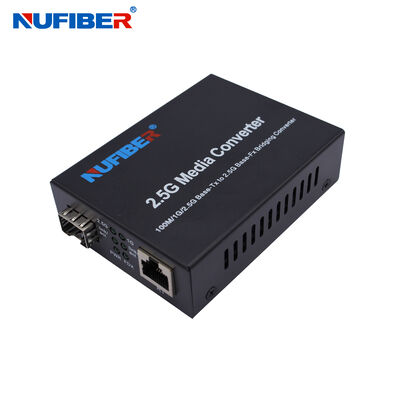

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV

MOQ: 1 piece
Standard Packaging: Carton Packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventng the contents from dampness
Delivery Period: within 1-3 working days after payment
Payment Method: T/T, Western Union, Credit card
Supply Capacity: 10000 pairs per month
Detail Information
Place of Origin
Shenzhen, China ( mainland)
Brand Name
NUFIBER
Certification
CE
Model Number
NF-C2.5G-SFP
Fiber Type:
Depend On The SFP
Fiber Interface:
SFP
Connector:
RG45 Port
UTP Speed:
100/1000/2.5G
Fiber Speed:
1G/2.5G
Distance:
Depend On The SFP
Power Supply:
DC12V1A
Operating Temperature:
0-70℃
Material:
Iron Case
Warranty:
1 Year
Product Description

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV





Overview

2.5G optical fiber transceiver is a kind of photoelectric converter switching between Ethernet electrical signals and photoelectric signals. Users can choose different models of optical modules according to their needs, which can realize the seamless connection between the optical signals of 100M / 1000M / 2.5 G Ethernet and electrical signals.It not only extends the transmission distance, but also has the advantages of isolation protection, good data confidentiality, stable work, easy maintenance and so on.



Key Features

  • Support the interconversion between 100M / 1G/2.5G Base-T and 2.5G Base-SX / LX;
  • One full-duplex 2.5Gbps light port, one 100M / 1G / 2.5G adaptive electric port;
  • 100M / 1G/2.5G rate adaptation, MDI / MDI-X adaptation, full / half-duplex adaptation;
  • Optical links and electrical links have a complete connection / active status indicator light;
  • Optical port supports single mode / multimode, single fiber, double fiber
  • Support QoS to ensure data packet transmission;
  • Support for broadcast storm suppression;
  • Support IEEE802.3x flow control, back pressure flow control;
  • Support for 12V DC input;
  • Support for up to 4KV of port lightning protection;
  • Support for low-latency transmission, but also has the isolation and protection function;
  • Using low power consumption chip, low heat rate, can work stably for a long time.



Technical Specifications



Part No. NF-C2.5G-SFP
Fiber Port 1*2.5G/1000M SFP Slot(Via Dip switch)
RJ45 Port 1*100/1000/2.5G
Standards IEEE802.3
IEEE802.3i
IEEE802.3u
IEEE802.3x
Store and Forward Support
backplane bandwidth 2G
MAC 8K
Warranty Time 1 year
Network Wired LAN
UTP Port Transmission Distance 100BASE-TX :Cat5 or later UTP(≤100 meter)
1000BASE-TX :Cat6 or later UTP(≤100 meter)
2500 Base-TX: Cat6 or later UTP(≤30 meter)
default function fiber speed 2.5G,utp speed 100M/1000M/2.5G auto-adaptive
DIP Switch OFF:
fiber speed:2.5G,
UTP speed:100M/1000M/2.5G auto-adaptive
ON:
fiber speed:1000M,
UTP speed:1000M,speed LED on.
Application FTTH FTTx FTTB Network
Color Black
Size 95mm*70mm*25mm(L*W*H)
Power supply DC 12V/1A
Operating Temperature/Humidity 0~+70°C;5%~90% RH Non coagulation
Storage Temperature/Humidity -40~+75°C;5%~95% RH Non coagulation
Warranty 1 Year
Certification CE RoHS FCC





Order Information



Model Description
NF-C570-SFP 10/100Base-Tx to 100Base-FX Media Converter with SFP Slot
NF-C2200-SFP 10/100/1000Base-Tx to 1000Base-FX Media Converter with SFP Slot
NF-C2.5G-SFP 100m/1000M/2.5G Tx to 1G/2.5G with SFP Slot
NF-C10G-SFP 10G Base-Tx to 10G Base-FX Media Converter with SFP+ Slot



Products show

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 0

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 1

2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 22.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 3



Shipping and Packaging



2.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 42.5G SFP to RJ45 Fiber Media Converter 2.5G Copper to SFP Optical Media Converter DC12V for CCTV 5
