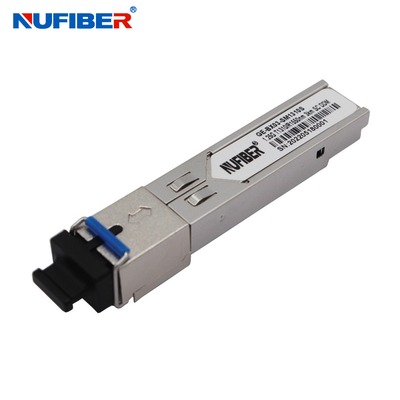

SFP 1.25G WDM 3km 1310nm 1550nm SC SFP Transceiver Compatible With MikroTik
Product Details:
| Place of Origin: | China |
| Brand Name: | NUFIBER |
| Certification: | CE FCC |
| Model Number: | GE-BX03-SM1310/1550S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Packaging Details: | 10pcs/plastic bag, 500pcs/carton, carton size: 455*328*280mm |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
|
Detail Information |
|||
| Speed: | 1.25Gb/s | Wavelength: | 1310nm/1550nm |
|---|---|---|---|
| Distance: | 3KM | Connector: | SC |
| DDM: | Support | Fiber Type: | Single Fiber Singlemode |
| Power Supply: | 3.3V | Compatibility: | Cisco, Huawei, HP... |
| Manufacturer: | Yes | Working Temp.: | 0~70℃ |
| High Light: | 3km SFP Module 1.25G,WDM SC SFP Transceiver,MikroTik SC SFP Transceiver |
||
Product Description
SFP Module 1.25G WDM 3km SC 1310nm/1550nm SFP Transceiver compatible with MikroTik
Description
NuFiber’s GE-BX03-SM1310S and GE-BX20-SM1550STransceivers are a high performance, cost effective module which have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 3km application.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Single SC connector
- Up to 3km on 9/125μm SMF
- 1310nm FP laser transmitter
- 1550nm PIN photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
Applications
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1×Fiber Channel
- Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1270 | 1310 | 1600 | nm | |
| Spectral Width(RMS) | σRMS | 4 | nm | |||
| Optical Output Power | Pout | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
| Total Jitter Contribution | TX Δ TJ | 0.284 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -3 | dBm | 4 | ||
| RX Sensitivity | Sen | -24 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -40 | dBm | |||
| RX_LOS De-assert | LOS D | -25 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 1.25 | Gb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 20 | km | |||
| Total System Budget | LB | 14 | dB | |||
