1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera

1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE,FCC,ROHS
Model Number: NF-16V1D-T/R-F20-1080P

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 10 pairs/ carton, carton size: 550*320*320mm
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 1000 pairs per month
Get Best Price Contact Now

Detail Information

Product Name: HD Fiber Video Converter Color: Black
Video: 16Channel BNC Fiber Type: Single Mode Simplex
Distance: 20km Fiber Connector: SC (FC/ST Optional)
Data: Rs485 (RS422 Available) OEM & ODM: Accepted
Power Supply: 5VDC Wavelength: 1310nm/1550nm
Manufacturer: Yes Material: Iron Case

Product Description

1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera

Description

The converter can simultaneously transmit 32ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.


Key Features

Non-compression coding technology;
Automatically identify formats of input videos;
Support 16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable;
DC 5V power supply;
Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc;
Through LED indicators to inform its functional mode;
Industrial wide range of operational temperature;
Plug and play, simple installation.

Applications

City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system

Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)


Technical Parameters


FeatureDescription





optical

Fiber TypeMulti-mode fiber or Single mode fiber
Fiber ConnectorFC/ST/SC
Distance0~80km (Optional)
Wavelength

Transmitter
Tx1310nm, Rx1550nm
Receiver
Tx1550nm,Rx1310nm.



Tx

Input level>500mVp-p
self-adaption cable equilibrium

1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m

Input/Output Impe75Ω
Physical Interface1/2/4/8/16channel BNC connector


Rx

Output level1Vp-p
Input/Output Impedance75Ω
Physical Interface1/2/4/8/16 channel BNC connector




Data

Transmission MediaCoaxial cable
Baud Rate1200~9600bit/s
Bit Error Rate≤10
Operation ModeHalf-Duplex
IndicatorsLOS,PWR,DATA,VIDEO
Mean time between ailures (MTBF)>100 000 hours




General

EPSDC5V
Power Consumption≤5W
Operation temperature0℃~75℃
Operation Humidity10%~90%
Atmospheric Pressure86kpa~106kpa
Mounting MethodWall-mounted

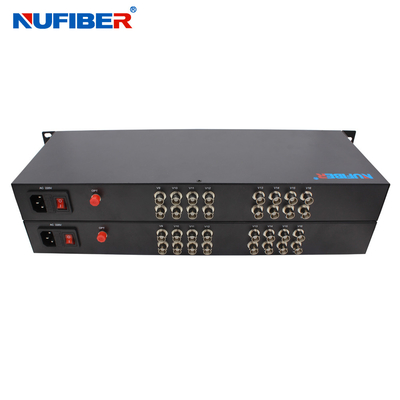

Products Show
1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 0
1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 11080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 2



Connection Diagram

1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 3


Packing&Shipping Method

 1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 4

1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera 5
