2*1000M Managed Industrial Switch 8 RJ45 Port Din Rail Mount Converter
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC Rohs |
| Model Number: | NF628GM-SFP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 1 piece/packing box with spongy filler, 20pcs per standard export carton |
| Delivery Time: | 1~2 work days for sample order |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 pcs per Month |
|
Detail Information |
|||
| Product Name: | Managed Industrial Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Fiber Port: | SFP Socked | Working Temp.: | -40 ~ +85℃ |
| Function: | SNMP, Telnet, WEB Managed | Installation: | DIN-rail Type |
| Protection Grade: | IP44 | Ports: | 8x10/100/1000Base RJ45 Ports+2x1000M SFP |
| OEM: | Accepted | Power Supply: | DC9~36V (POE: DC48~57V) |
| High Light: | 2*1000M Managed Industrial Switch,SFP Managed Industrial Switch,2*1000M Industrial SFP Switch |
||
Product Description
2*1000M Managed Industrial Switch 8 RJ45 Port Din Rail Mount Converter
Layer 2 Ring Network Managed Industrial SFP Switch 2*1000M 8 RJ45 Port Din Rail Mount Converter
Overview
NuFiber's NF628GM-SFP series is the 10/100/1000Mbps managed industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Features
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2 x 1000Mbps SFP fiber ports
- 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c
- Intelligent power consumption detection and classification
- SW-Ring ring network patent technology (Fault recovery time<20ms)
- IGMP Snooping, GMRP and static IGMP
- VLAN,PVLAN, Port trunking, rate control, control broadcast domain
- IEEE802.1p_QOS
- SNMP, Telnet, WEB
- SSH,SSL,ACL, automatic MAC address bounding
- IEEE 802.1d(STP),IEEE 802.1w(RSTP),IEEE 802.1s(MSTP)
- Support port mirroring
- Alarming: support ARP listening, power down, and ring-alarm
- Jumbo frames support up to 16kb
- Support link monitoring
Technical Specification
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch (2F+2TP) |
| Model No. | NF628GM-SFP |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage: DC9-36V No-load power consumption: 5W Reverse polarity protection: support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class:IP44 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; |
Ordering information
| Model | Description |
| NF512GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF514GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF516GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 6 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF518GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF522GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 2 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF524GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF526GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 6 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF528GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF544GM-SFP | Managed Industrial 10/100/1000M 4 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
| NF548GM-SFP | Managed Industrial 10/100/1000M 4 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |

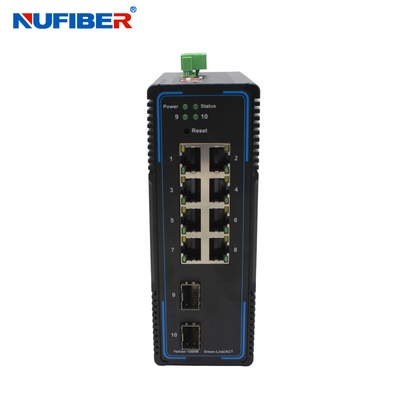

Product Picture
Connection diagram:
Support RING Network:
Factory Show
Packing&Shipping
Welcome to send us inquiry for this products.
