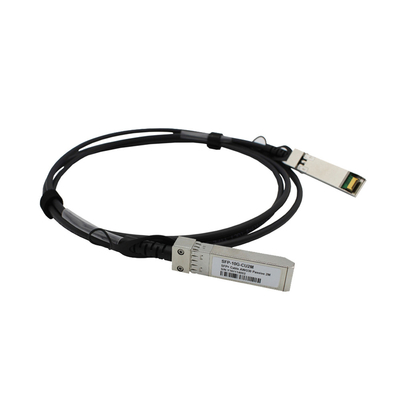

Passive 10G SFP+ DAC Cable , Twinax 1-7meters SFP Direct Attach Cable

Passive 10G SFP+ DAC Cable , Twinax 1-7meters SFP Direct Attach Cable

Product Details:

Place of Origin: China
Brand Name: NUFIBER
Certification: CE, RoHS
Model Number: 10G-DAC-1M

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 1 piece cable be packed into 1 box,
Delivery Time: 2~3 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000 pcs per month
Get Best Price Contact Now

Detail Information

Data Rate: 10Gb/s Connector Type: SFP+ To SFP+
Length: 1m/3m/5m/7m/10m/15m Material: Copper Cable
Application: FTTH FTTB FTTX Network Wire AWG: AWG 30 As Default
Power Supply: 3.3V Work Temp.: 0~70℃
Manufacturer: YES Warranty: 1 Years
High Light:

Passive SFP+ DAC Cable

,

10G SFP+ DAC Cable

,

7meters SFP Direct Attach Cable

Product Description

10G SFP+ DAC Cable Passive Direct Attach Copper Twinax Cable 1-7meters SFP Direct Attach Cable
Description
SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).


Key Features
(1) Compliant with SFF-8431, 8432 and 8472;
(2) Up to 10.3125Gbps data rate per channel;
(3) Up to 7m transmission;
(4) Operating temperature: 0~70℃;
(5) Single 3.3V power supply;
(6) RoHS compliant.


Application
Passive 10G SFP+ DAC Cable , Twinax 1-7meters SFP Direct Attach Cable 0
Passive 10G SFP+ DAC Cable , Twinax 1-7meters SFP Direct Attach Cable 1

  • 10G Ethernet
  • InfiniBand, Fiber Channel 4G/8G/10G
  • Sonet Multiplatform support
  • High Performance Computing Clusters
  • High End Servers
  • Metro Network Switch/Cross Connect


Technical Parameter


ParameterSymbolMinTypicalMaxUnit
Operating Case TemperatureStandard Tc02570°C
Storage TemperatureTs-40 85°C
Power Supply VoltageVcc3.133.33.47V
Power DissipationPD  0.5W
Relative HumidityRH5 95%
Data Rate  10.5 Gbps



Test TypeTest ItemTargetReference
Electrical
Characteristics
Differential Mode RL(SDDII)0.01<f<4.1 ; < -12+2*SQRT(f )
4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)
Where f is in GHz
Measurements units: dB
SFF 8431
Common mode return loss
(SCCII)
0.01<f<2.5 ; <-7+1.6(f )
2.5<f<11.1 ; <-3
Where f is in GHz
Measurements units: dB
SFF 8431
NEXT<-26dB from 1MHz to 11GHz/
Cable assembly Impedence100+/ -100hm
Rise time of 30 ps (20 %- 80 %)
(20%~80 %)
Insertion Loss Deviation-1dB≤ILD≤1dB
300KHz≤f≤6GHz
/
Environmental
Characteristics
Operating Temperature-40~85°CCable operating temp.range
Thermal ShockElectrical performance meet the
specification requirement
EIA-364-32D. Method A.
TC-1. -55 10 85C,100
cycles, 15 min, dwells
Cyclic Temp. & HumidityElectrical performance meet the
specification requirement
EIA-364-31 Method III,Test
Cond A
Salt spray48 hours salt spraying after shell
corrosive area less than 5%
EIA-364-26
Temperature LifePerformance meets the specification requirementEIA-364-17B w/ RH, Damp
heat 85C at 85% RH for 500 hours
Mechanical
Characteristics
MechanicaI VibrationPerformance meets the specification requirementEIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
Cable Plug Retention in Cage90N Min.No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
Cable Retention in Plug90N Min.Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
Mechanical ShockPerformance meets the specification requirementSFF-8432 Rev 5.0
Cable plug Insertion18N(Max.)SFF-8432 Rev 5.0
Cable plug extraction12.5N(Max.)EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
Durability50 Time. No evidence of physical damage250times/hour



Ordering Information

Part NumberData RateCable LengthWire GaugeConnectorTemp. Range
10G-DAC-1MUp to 10.5 Gbps1m30AWGPassive Copper0-70℃
10G-DAC-3MUp to 10.5 Gbps3m30AWGPassive Copper0-70℃
10G-DAC-5MUp to 10.5 Gbps5m24AWGPassive Copper0-70℃
10G-DAC-7MUp to 10.5 Gbps7m24AWGPassive Copper0-70℃
