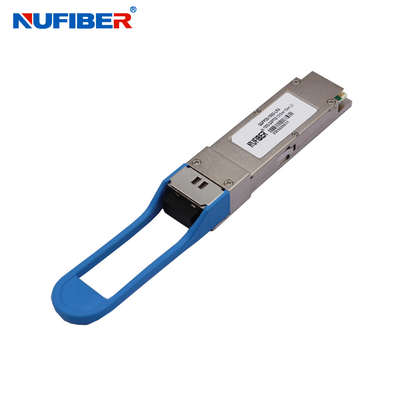

QSFP 10KM LC Optical Transceiver , 100G QSFP28 LR4 CWDM4 for HP H3C
Product Details:
Place of Origin: | China |
Brand Name: | NuFiber |
Certification: | CE FCC Rohs |
Model Number: | QSFP28-100G-LR4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 piece |
---|---|
Packaging Details: | 4pcs/plastic plate, |
Delivery Time: | Within 1-3 work days |
Payment Terms: | L/C, T/T, Western Union,Credit Card |
Supply Ability: | 10,000 pcs per month |
Detail Information |
|||
Data Rate: | 100Gb/s | Wavelength: | 1270-1330nm |
---|---|---|---|
Distance: | 20km | Connector: | LC |
DDM: | Support | Fiber Type: | Singlemode |
Power Supply: | 3.3V | Compatibility: | Huawei, Cisco, HP, H3C... |
High Light: | QSFP28 LC Optical Transceiver,100G LC Optical Transceiver,CWDM4 100G QSFP28 LR4 |
Product Description
Compatible Huawei 100G QSFP28 LR4 20KM LC Receptacle DDM 1310nm Optical Transceiver Module
100G QSFP28 LR4 10KM LC Optical Transceiver with qsfp 100g cwdm4 support cisco huawei finisar
(QSFP28-100G-LR4)
100Gb/s 20km QSFP28 Transceiver
Hot Pluggable, Duplex LC Connector, Single mode
1270 nm, 1290 nm, 1310 nm and 1330 nm
Description
The QSFP28-100G-LR4 is a transceiver module designed for 20km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.
The central wavelengths of the 4 lanes are 1270 nm, 1290 nm, 1310 nm and 1330 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
Features
- 4 lanes MUX/DEMUX design
- Integrated CWDM TOSA / ROSA for up to 20 km reach over SMF
- Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
- Aggregate bandwidth of > 100Gbps
- Duplex LC connectors
- Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard ·
- Single +3.3V power supply operating
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- RoHS Compliant Part
Applications
- Local Area Network (LAN)
- Wide Area Network (WAN)
- Ethernet switches and router applications
Optical Parameters
Parameter | Symbol | Min | Typ | Max | Unit | Note | |
Data Rate per Channel | - | 25.78125 | Gbps | ||||
Power Consumption | - | 2.5 | 3.5 | W | |||
Supply Current | Icc | 0.75 | 1.0 | A | |||
Control I/O Voltage-High | VIH | 2.0 | Vcc | V | |||
Control I/O Voltage-Low | VIL | 0 | 0.7 | V | |||
Inter-Channel Skew | TSK | 150 | Ps | ||||
RESETL Duration | 10 | Us | |||||
RESETL De-assert time | 100 | ms | |||||
Power On Time | 100 | ms | |||||
Transmitter | |||||||
Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | |||
Common mode Voltage Tolerance | 15 | mV | |||||
Transmit Input Diff Voltage | VI | 120 | 1200 | mV | |||
Transmit Input Diff Impedance | ZIN | 80 | 100 | 120 | |||
Data Dependent Input Jitter | DDJ | 0.1 | UI | ||||
Data Input Total Jitter | TJ | 0.28 | UI | ||||
Receiver | |||||||
Single Ended Output Voltage Tolerance | 0.3 | 4 | V | ||||
Rx Output Diff Voltage | Vo | 600 | 800 | mV | |||
Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | |||
Total Jitter | TJ | 0.7 | UI | ||||
Deterministic Jitter | DJ | 0.42 | UI |
Ordering information
100G QSFP28 | ||||||
QSFP28-100G-SR4 | 103.1 Gbp | 850nm | MMF | MTP/MPO | 100m | VCSEL 850nm |
QSFP28-100G-LR4 | 103.1 Gbp | 1310nm | SMF | LC duplex | 10km | DML 1310nm |
QSFP28-100G-ER4 | 103.1Gbps | 1310nm | SMF | LC Duplex | 25km-40km | 4x EML |
QSFP28-100G-PSM4 | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 500m | 4x DFB |
QSFP28-100G-LR-S | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 2km | 4x DFB |
QSFP28-100G-CWDM4-S | 103.1 Gbp | CWDM | SMF | LC duplex | 2km | DML CWDM |
1271~1331nm | ||||||
QSFP28-100G-CWDM4-L | 103.1 Gbp | CWDM | SMF | LC duplex | 10km | DML CWDM |
1271~1331nm |
