| MOQ: | 1 piece |
| Standard Packaging: | 4pcs/plastic plate, |
| Delivery Period: | Within 1-3 work days |
| Payment Method: | L/C, T/T, Western Union,Credit Card |
| Supply Capacity: | 10,000 pcs per month |
(QSFP28-100G-ER4)

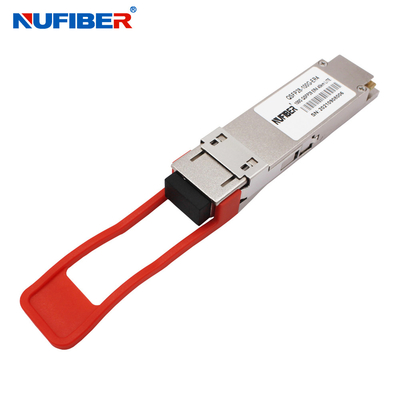

100G QSFP28 ER4 40km Optical Transceiver Module compatible with Cisco Huawei HP Juniper
Hot Pluggable, Duplex LC Connector, Single mode
100G QSFP28 To 40KM For Cisco Sfp Fiber Transceiver Module Optical,Sfp Optical Transceiver,Qsfp Transceiver Module
The QSFP28-100G-ER4 is a transceiver module designed for 40km with FEC (30km without FEC) optical communication applications. The design is compliant to 100GbASE-ER4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.
The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
Features
Applications
Optical Parameters
| Parameter | Symbol | Min | Typ | Max | Unit | Note | |
| Data Rate per Channel | - | 25.78125 | Gbps | ||||
| Power Consumption | - | 2.5 | 3.5 | W | |||
| Supply Current | Icc | 0.75 | 1.0 | A | |||
| Control I/O Voltage-High | VIH | 2.0 | Vcc | V | |||
| Control I/O Voltage-Low | VIL | 0 | 0.7 | V | |||
| Inter-Channel Skew | TSK | 150 | Ps | ||||
| RESETL Duration | 10 | Us | |||||
| RESETL De-assert time | 100 | ms | |||||
| Power On Time | 100 | ms | |||||
| Transmitter | |||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | |||
| Common mode Voltage Tolerance | 15 | mV | |||||
| Transmit Input Diff Voltage | VI | 120 | 1200 | mV | |||
| Transmit Input Diff Impedance | ZIN | 80 | 100 | 120 | |||
| Data Dependent Input Jitter | DDJ | 0.1 | UI | ||||
| Data Input Total Jitter | TJ | 0.28 | UI | ||||
| Receiver | |||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | ||||
| Rx Output Diff Voltage | Vo | 600 | 800 | mV | |||
| Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | |||
| Total Jitter | TJ | 0.7 | UI | ||||
| Deterministic Jitter | DJ | 0.42 | UI | ||||
Ordering information
| 100G QSFP28 | ||||||
| QSFP28-100G-SR4 | 103.1 Gbp | 850nm | MMF | MTP/MPO | 100m | VCSEL 850nm |
| QSFP28-100G-LR4 | 103.1 Gbp | 1310nm | SMF | LC duplex | 10km | DML 1310nm |
| QSFP28-100G-ER4 | 103.1Gbps | 1310nm | SMF | LC Duplex | 25km-40km | 4x EML |
| QSFP28-100G-PSM4 | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 500m | 4x DFB |
| QSFP28-100G-LR-S | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 2km | 4x DFB |
| QSFP28-100G-CWDM4-S | 103.1 Gbp | CWDM | SMF | LC duplex | 2km | DML CWDM |
| 1271~1331nm | ||||||
| QSFP28-100G-CWDM4-L | 103.1 Gbp | CWDM | SMF | LC duplex | 10km | DML CWDM |
| 1271~1331nm | ||||||
Products Show
