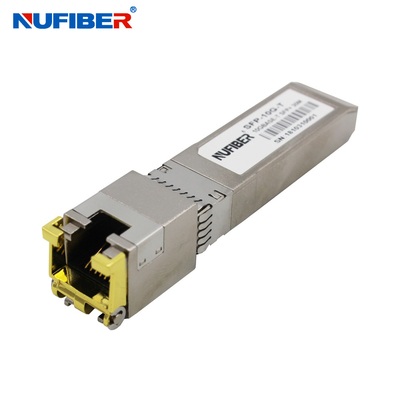

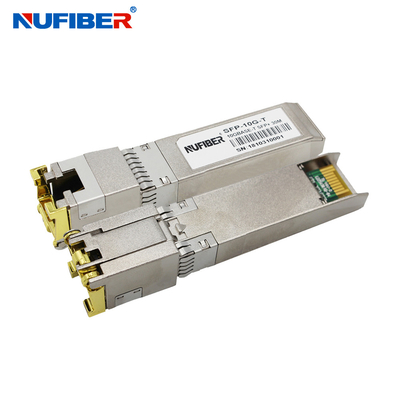

Huawei Compatible 10G BASE-T Copper SFP Module 30m Rj45 sfp module transceiver
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
Features
Cable Length
| Standard | Cable | Reach | Host Port |
| 10Gbase-T | CAT6A | 30m | XFI |
| 5Gbase-T/2.5Gbase-t | CAT5E | 50m | 5GBase-R/2.5GBase-X |
| 1000base-T | CAT5E | 100m | 1000base-FX |
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Units | Notes/Conditions |
| Supply Current | Is | 320 | 375 | mA | 1.2W max power over full range of voltage and temperature. See caution note below | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Surge Current | Isurge | 30 | mA | Hot plug above steady state current. See caution note |
Low-Speed Signals
| Low-Speed Signals, Electronic Characteristics | |||||
| Parameter | Symbol | Min | Max | unit | Notes/Conditions |
| SFP Output LOW | VOL | 0 | 0.5 |
V
|
4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
| SFP Output HIGH | VOH | host_Vcc -0.5 | host_Vcc + 0.3 |
V
|
4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
| SFP Input LOW | VIL | 0 | 0.8 | V |
4.7k to 10k pull-up to Vcc, measured at SFP side of connector
|
| SFP Input HIGH | VIH | 2 | Vcc + 0.3 | V |
4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
High-Speed Electrical Interface
| High-Speed Electrical Interface Transmission Line-SFP | ||||||
| Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
| Line Frequency | fL | 125 | MHz |
5-level encoding, per IEEE 802.3 |
||
| Tx Output Impedance | Zout,TX | 100 | Ohm |
Differential, for all frequencies between 1MHz and 125MHz |
||
| Rx Input Impedance | Zin,RX | 100 | Ohm |
Differential, for all frequencies between 1MHz and 125MHz |
||
| High-Speed Electrical Interface, Host-SFP | ||||||
| Parameter | Symbol | Min | Typ | Max | unit | Notes/Conditions |
|
Single ended data input swing |
Vinsing | 250 | 1200 |
mV
|
Single ended | |
|
Single ended data output swing |
Voutsing | 350 | 800 | mV | Single ended | |
| Rise/Fall Time | Tr,Tf | 175 | psec | 20%-80% | ||
| Tx Input Impedance | Zin | 50 | Ohm | Single ended | ||
| Rx Output Impedance | Zout | 50 | Ohm | Single ended | ||
Ordering information
| Dual Fiber SFP Transceiver | |
| Part Number | Product Description |
| 155Mbp/s SFP Transceiver | |
| FE-SX-MM850 | 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-SX-MM1310 | 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-LX20-SM1310 | 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| FE-LX40-SM1310 | 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| FE-LX80-SM1550 | 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| FE-LX120-SM1550 | 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 1.25Gbps SFP Transceiver | |
| GE-SX-MM850 | 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C |
| GE-SX-MM1310 | 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| GE-LX20-SM1310 | 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| GE-LX40-SM1310 | 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| GE-LX60-SM1550 | 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C |
| GE-LX80-SM1550 | 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| GE-LX120-SM1550 | 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 10Gbps SFP Transceiver | |
| SFP+-10GB-SR | 10G SFP+ SR Multi mode dual fiber LC 850nm 300M |
| SFP+-10GB-LRM | 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M |
| SFP+-10GB-LR | 10G SFP+ LR Single mode dual fiber LC 1310nm 20km |
| SFP+-10GB-ERM | 10G SFP+ER Single mode dual fiber LC 1310nm 40km |
| SFP+-10GB-ER | 10G SFP+ER Single mode dual fiber LC 1550nm 40km |
| SFP+-10GB-ZR | 10G SFP+ZR Single mode dual fiber LC 1550nm 80km |
| XFP Transceiver | |
| XFP-10G-SR | 10G XFP SR Multi mode dual fiber LC 850nm 300M |
| XFP-10G-LRM | 10G XFP LRM Single mode dual fiber LC 1310nm 10kM |
| XFP-10G-LR | 10G XFP LR Single mode dual fiber LC 1310nm 20km |
| XFP-10G-ER | 10G XFP ER Single mode dual fiber LC 1550nm 40km |
| XFP-10G-ZR | 10G XFP ZR Single mode dual fiber LC 1550nm 80km |
