QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC

QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC

Product Details:

Place of Origin: China
Brand Name: Nufiber
Certification: CE FCC
Model Number: QSFP-40G-LX4

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 10pcs/plastic bag,200pcs/carton
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Week
Get Best Price Contact Now

Detail Information

Data Rate: 40Gb/s Distance: 150m(MMF OM3/OM4) Or 2KM(SMF 1310nm)
Connector: LC Fiber Type: Multi Mode Or Singlemode
Power Supply: 3.3V Operating Temperature: 0~70℃
Warranty: 1 Years Manufacturer: Yes
OEM: Support
High Light:

150M Multimode Transceiver

,

OM3 Multimode Transceiver

,

QSFP-40G-LX4 Multimode Fiber Transceiver

Product Description

QSFP-40G-LX4 40G qsfp multimode OM3 150m with Duplex LC 1310nm support Cisco/huawei/H3C/Mikrotik/Juniper

QSFP-40G-LX4 QSFP 40G Duplex LC 1310nm support both of 2KM on SMF and 150m on OM3 MMF cable


Key Features

4 CWDM lanes MUX/DEMUX design

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

QSFP MSA compliant

Up to 150m on MMF(OM3),  2km on SMF transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

power consumption<2.5W

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant


Applicataion


Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4 Ethernet Links



Optical Parameters(TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts)

ParameterSymbolMinTypMaxUnitRef.
Transmitter
Wavelength AssignmentL01264.512711277.5nm
L11284.512911297.5nm
L21304.513111317.5nm
L31324.513311337.5nm
Side-mode Suppression RatioSMSR30--dB
Total Average Launch PowerPT--8.3dBm
Average Launch Power, each Lane -7-2.3dBm
Difference in Launch Power between any two Lanes (OMA) --6.5dB
Optical Modulation Amplitude,each LaneOMA-4 +3.5dBm
Launch Power in OMA minus

Transmitter and Dispersion Penalty
(TDP), each Lane

 -4.8- dBm
TDP, each LaneTDP  2.3dB
Extinction RatioER3.5--dB

Transmitter Eye Mask Definition {X1,
X2, X3, Y1, Y2, Y3}



{0.25, 0.4,

0.45,

0.25,

0.28, 0.4}


Optical Return Loss Tolerance --20dB




























Ordering Information


QSFP-40G-SR440Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR440Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-ER440Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX440Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX440Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm



Products Show

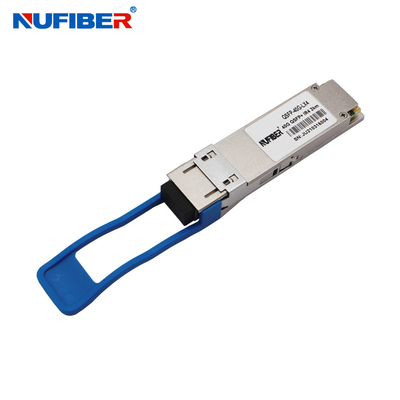

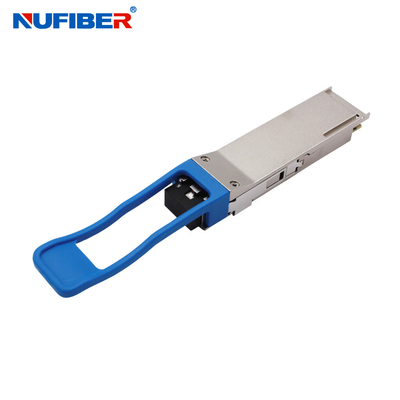

QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 0QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 1
 QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 2QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 3QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 4

Packaging & Shipping
QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 5QSFP-40G-LX4 OM3 150M Multimode Transceiver With Duplex LC 6
