| MOQ: | 1 piece |
| Standard Packaging: | 20pcs/carton, carton size: 66.0*31.5*33.5cm |
| Delivery Period: | 1-3 work days |
| Payment Method: | T/T, Western Union,Credit Card |
| Supply Capacity: | 100,000 pcs per month |

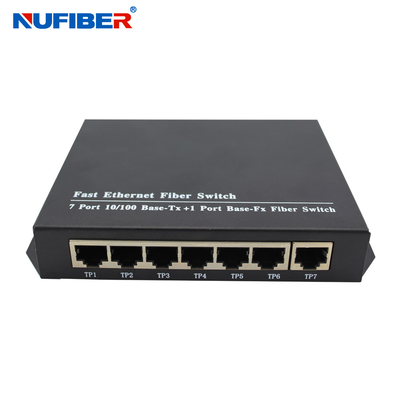

This Fiber Ethernet switch has 7 10/100M UTP ports and one 100M fiber port. It converts 10/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.
1. 1 fiber port, single or multi-mode, 7 RJ45 ports
2. 1 or 2 fiber design
3. Converts optical/electrical Ethernet signals between 10/100M UTP ports and 100M optical fiber ports
4. 10/100M auto-negotiation in TP port, maximum speed to 20/200M (full-duplex)
5. Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
6. Store and forward switching mechanism
7. Supports MAC self-learning
8. Automatic MDI/MDI-X configuration
9. LED link status indicator for activity, full/half duplex, speed, and power on diagnostic function
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Number of Ports | 7 Port 10/100Base-Tx and 1 Port 100Base-Fx |
| Transmission Rate | 10 Mbps: 14880 pps, 100Mbps: 148800 pps |
| Switching Mode | Store-and-Forward |
| Flow Control Mode | IEEE 802.3x full-duplex flow control and back pressure flow control |
| LED Status Indicator | LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function |
| Cable Support | 10Base-T: 3, 4 or Cat 5 shielded / unshielded twisted pair, max 100 meters 100Base-TX: Cat 5 shielded / unshielded twisted pair, max 100 meters 100Base-Fx: 8.3 μm, 8.7 μm, 9 μm and10 μm on single mode fiber and 50, 62.5 and 100 μm on multi-mode fiber |
| Power Supply | AC: 100 V to 240 V or DC: 5V 2A |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Storage Humidity | 5% to 90% RH |
Product Show
Factory Show
Packing & Shipping
|
|
