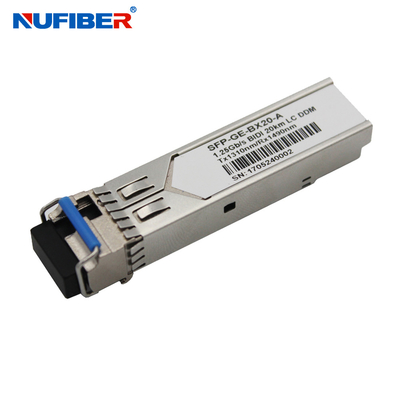

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag, 200pcs/carton
Delivery Period: 1-3 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC
Model Number
GE-BX20-SM1310/1490
Speed:
1.25Gbs
Wavelength:
Tx1310nmRx1550nm
Distance:
20KM
Connector:
LC
DDM:
Support
Fiber Type:
Fiber Fiber Singlemode
Power Supply:
3.3V
Compatibility:
Cisco, Huawei, HP...
Manufacturer:
Yes
Working Temp.:
0~70℃
Warranty:
1 Year
Highlight:

Singlemode SFP Fiber Module 1310nm

,

SFP Fiber Module 1310nm 20km

Product Description

1.25Gb/s SFP Transceiver single fiber singlemode 20km 1310nm/1490nm LC DDM

Description

NuFiber’s GE-BX20-SM1310/1490 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.



Features



  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 20km on 9/125μm MMF
  • 1310nm FP laser transmitter
  • 1490nm PIN photo-detector
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free



Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-LX Ethernet
  • 1×Fiber Channel
  • Other Optical Links



Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)



Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1360 nm
Spectral Width(RMS) σRMS     3 nm
Optical Output Power Pout -9   -3 dBm 1
Extinction Ratio ER 8.2     dB
Optical Rise/Fall Time tr / tf     260 ps 2
Relative Intensity Noise RIN     -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1260   1360 nm
Receiver Overload Pol -3     dBm 4
RX Sensitivity Sen     -24 dBm 4
RX_LOS Assert LOS A -35     dBm
RX_LOS De-assert LOS D     -25 dBm
RX_LOS Hysteresis LOS H 0.5     dB
General Specifications:
Data Rate BR   1.25   Gb/s
Bit Error Rate BER     10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX   20   km
Total System Budget LB 15     dB






















































Ordering information



Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km



Product Show

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 0

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 1

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 2

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 3

Packaing & Shipping

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 4





Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 5



Factory Show

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 6



FAQ

Singlemode SFP Fiber Module 1310nm 1490nm 20km For High Speed Signal 7
