80km 2.5Gb/S Sfp Module Transceiver Singlemode 1490nm 1550nm
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE FCC |
| Model Number: | SFP-2.5G-BX80D-SM1490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pair |
|---|---|
| Packaging Details: | 10pcs/plastic bag, 500pcs/carton, carton size: 455*328*280mm |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000 pcs per month |
|
Detail Information |
|||
| Speed: | 2.5Gb/s | Wavelength: | 1490nm/1550nm |
|---|---|---|---|
| Distance: | 80KM | Connector: | LC |
| DDM: | Support | Fiber Type: | Single Fiber Singlemode |
| Power Supply: | 3.3V | Compatibility: | Cisco, Huawei, HP... |
| Manufacturer: | Yes | Working Temp.: | 0~70℃ |
| Warranty: | 3 Years | ||
| High Light: | 80km 2.5Gb/S Sfp Module Transceiver,2.5Gb/S Sfp Module Transceiver Singlemode |
||
Product Description
2.5Gb/s SFP Transceiver single fiber singlemode 80km 1490nm/1550nm LC DDM
Description
NuFiber’s SFP-2.5G-BX80D-SM1490 Transceivers are a high performance, cost effective module which have a Single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a APD receiver and the transmitter uses a 1490 nm DFB laser, up to 26dB link budge ensure this module SONET OC-48 / SDH STM -16 80km application.
Features
- Up to 2.67Gb/s Data Links
- Hot-Pluggable
- Single LC connector
- Up to 80 km on 9/125μm SMF
- 1490nm DFB laser transmitter
- 1550nm APD photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum power dissipation <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
Applications
- SONET OC-48 / SDH STM -16
- SONET OC-12 / SDH STM -4
- SONET OC-3 / SDH STM -1
- Gigabit Ethernet
- 1x/2xFibre Channel
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1470 | 1490 | 1510 | nm | |
| Spectral Width | σ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Optical Output Power | Pout | -2 | +3 | dBm | 1 | |
| Extinction Ratio | ER | 8.2 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
|
Total Generated Transmitter Jitter (peak to peak) |
JTXp-p | 0.07 | UI | |||
|
Total Generated Transmitter Jitter (rms) |
JTXrms | 0.007 | UI | |||
| Eye Mask for Optical Output | Compliant with eye mask Telcordia GR-253-GORE | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -9 | dBm | 3 | ||
| RX Sensitivity | Sen | -28 | dBm | 3 | ||
| RX_LOS Assert | LOS A | -45 | dBm | |||
| RX_LOS De-assert | LOS D | -29 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 155 | 2667 | Mb/s | ||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@2.5Gb/s | LMAX | 80 | km | |||
| Total System Budget | LB | 26 | dB | |||
Ordering information
| BiDi SFP Transceiver | ||
| Part Number | Product Description | |
| 155Mb/s SFP Transceiver | ||
| FE-BX20-SM1310/1550 | 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
| FE-BX40-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
| FE-BX80-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
| FE-BX100-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
| 1.25Gbps SFP Transceiver | ||
| GE-BX10-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C | |
| GE-BX20-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
| GE-BX40-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
| GE-BX60-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C | |
| GE-BX80-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
| GE-BX100-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
| 10Gbps SFP+ Transceiver | ||
| SFP-10G-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
| SFP-10G-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
| SFP-10G-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |
| SFP-10G-BX80-SM1490/1550 | 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C | |
| XFP Transceiver | ||
| XFP-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
| XFP-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
| XFP-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |

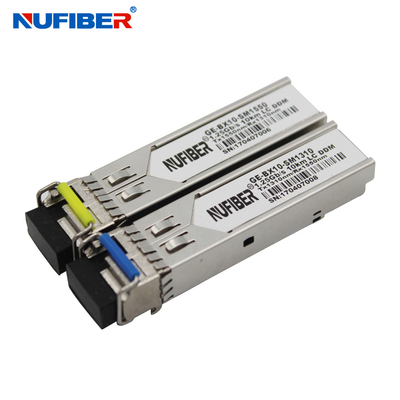

Product Show
Packaing & Shipping
Factory Show
Want to Know more details about this product
