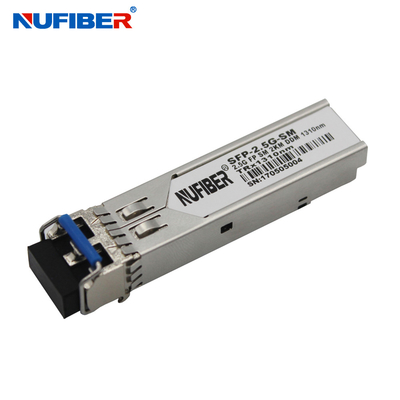

NuFiber’s SFP-2.5G-LX120-SM1550 Transceivers are a high performance, cost effective module which have a duplex LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a APD receiver and the transmitter uses a 1550 nm DFB laser, up to 26dB link budge ensure this module SONET OC-48 / SDH STM -16 80km application.
Features
Applications
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Spectral Width@-20dBm | σ | 1 | nm | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Optical Output Power | Pout | -2 | +3 | dBm | 1 | |
| Extinction Ratio | ER | 8.2 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
|
Total Generated Transmitter Jitter (peak to peak) |
JTXp-p | 0.07 | UI | |||
|
Total Generated Transmitter Jitter (rms) |
JTXrms | 0.007 | UI | |||
| Output Eye Mask | Compliant with eye mask Telcordia GR-253-GORE | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1270 | 1610 | nm | ||
| RX Sensitivity @ OC-48/STM-16 | Sen1 | -28 | dBm | 3 | ||
| RX Sensitivity @ 2xFibre channel | Sen2 | -28 | dBm | 4 | ||
| RX Sensitivity @ Gigabit Ethernet | Sen3 | -30 | dBm | 4 | ||
| RX Sensitivity @ OC-12/STM-4 | Sen4 | -29 | dBm | 5 | ||
| RX Sensitivity @ OC-4/STM-1 | Sen5 | -30 | dBm | 5 | ||
| RX_LOS Assert | LOS A | -40 | dBm | |||
| RX_LOS De-assert | LOS D | -29 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| Receiver Overload | Pol | -9 | dBm | |||
| General Specifications: | ||||||
| Data Rate | BR | 155 | 2667 | Mb/s | ||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF @ OC-48/STM-16 | LMAX1 | 80 | km | |||
| Max. Supported Link Length on 9/125μm SMF @ 2xFibre channel | LMAX2 | 85 | km | |||
| Max. Supported Link Length on 9/125μm SMF @ Gigabit Ethernet | LMAX3 | 100 | km | |||
| Max. Supported Link Length on 9/125μm SMF @ OC-12/STM-4 | LMAX4 | 100 | km | |||
| Max. Supported Link Length on 9/125μm SMF @ OC-4/STM-1 | LMAX5 | 100 | km | |||
Ordering information
| Dual Fiber SFP Transceiver | |
| Part Number | Product Description |
| 155Mbp/s SFP Transceiver | |
| FE-SX-MM850 | 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-SX-MM1310 | 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-LX20-SM1310 | 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| FE-LX40-SM1310 | 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| FE-LX80-SM1550 | 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| FE-LX120-SM1550 | 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 1.25Gbps SFP Transceiver | |
| GE-SX-MM850 | 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C |
| GE-SX-MM1310 | 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| GE-LX20-SM1310 | 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| GE-LX40-SM1310 | 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| GE-LX60-SM1550 | 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C |
| GE-LX80-SM1550 | 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| GE-LX120-SM1550 | 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 10Gbps SFP Transceiver | |
| SFP+-10GB-SR | 10G SFP+ SR Multi mode dual fiber LC 850nm 300M |
| SFP+-10GB-LRM | 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M |
| SFP+-10GB-LR | 10G SFP+ LR Single mode dual fiber LC 1310nm 20km |
| SFP+-10GB-ERM | 10G SFP+ER Single mode dual fiber LC 1310nm 40km |
| SFP+-10GB-ER | 10G SFP+ER Single mode dual fiber LC 1550nm 40km |
| SFP+-10GB-ZR | 10G SFP+ZR Single mode dual fiber LC 1550nm 80km |
| SFP+10G40-CWDM | 1470 ~1610nm CWDM SFP+ 40km |
| SFP+10G80-CWDM | 1470~1570nm CWDM SFP+ 80km |
| SFP+10G80-CWDM | 1590~1610nm CWDM SFP+ 80km |
| SFP+10G40-DWDM | DWDM SFP+ 40km |
| SFP+10G80-DWDM | DWDM SFP+ 80km |
| XFP Transceiver | |
| XFP-10G-SR | 10G XFP SR Multi mode dual fiber LC 850nm 300M |
| XFP-10G-LRM | 10G XFP LRM Single mode dual fiber LC 1310nm 10kM |
| XFP-10G-LR | 10G XFP LR Single mode dual fiber LC 1310nm 20km |
| XFP-10G-ER | 10G XFP ER Single mode dual fiber LC 1550nm 40km |
| XFP-10G-ZR | 10G XFP ZR Single mode dual fiber LC 1550nm 80km |
| CWDM DWDM Transceiver | |
| XFP-CWDM-40xx | 1470 ~1610nm CWDM XFP 40km |
| XFP-CWDM-80xx | 1470~1570nm CWDM XFP 80km |
| XFP-CWDM-80xx | 1590~1610nm CWDM XFP 80km |
| XFP-DWDM-40xx | DWDM XFP 40km |
| XFP-DWDM-80xx | DWDM XFP 80km |
| XFP-DWDM-100xx | DWDM XFP100km |
