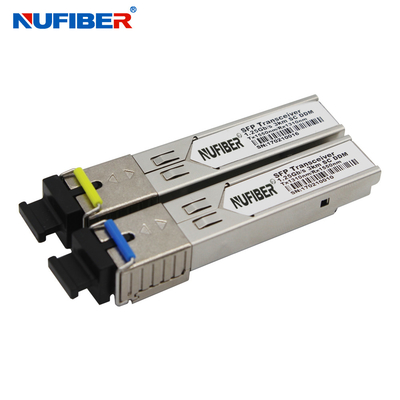

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant

MOQ: 1 pair
Standard Packaging: 10pcs/plastic bag, 500pcs/carton, carton size: 455*328*280mm
Delivery Period: 1-3 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC
Model Number
GE-BX03-SM1310S
Speed:
1.25Gb/s
Wavelength:
1310nm/1550nm
Distance:
3KM
Connector:
SC
DDM:
Support
Fiber Type:
Single Fiber Singlemode
Power Supply:
3.3V
Compatibility:
Cisco, Huawei, HP...
Manufacturer:
Yes
Working Temp.:
0~70℃
Warranty:
1 Year
Highlight:

GE-BX03-SM1310S

,

3km 1.25G SFP Transceiver

,

1.25G SFP Transceiver RoHS Compliant

Product Description

1.25Gb/s SFP Transceiver single fiber singlemode 3km 1310nm/1550nm SC DDM

Description

NuFiber’s GE-BX03-SM1310S and GE-BX03-SM1550S Transceivers are a high performance, cost effective module which have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 12dB link budge ensure this module 1000Base-LX Ethernet 3km application.



Features



  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Single SC connector
  • Up to 3 km on 9/125μm SMF
  • 1310nm FP laser transmitter
  • 1550nm PIN photo-detector
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free



Applications

  • 1000Base-LX Ethernet
  • Metro/Access Networks
  • 1×Fiber Channel
  • Other Optical Links



Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1600 nm
Spectral Width(RMS) σRMS     4 nm
Optical Output Power Pout -9   -3 dBm 1
Extinction Ratio ER 9     dB
Optical Rise/Fall Time tr / tf     260 ps 2
Relative Intensity Noise RIN     -120 dB/Hz
Total Jitter Contribution TX Δ TJ     0.284 UI 3
Eye Mask for Optical Output Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1530 1550 1570 nm
Receiver Overload Pol -3     dBm 4
RX Sensitivity Sen     -21 dBm 4
RX_LOS Assert LOS A -35     dBm
RX_LOS De-assert LOS D     -22 dBm
RX_LOS Hysteresis LOS H 0.5     dB
General Specifications:
Data Rate BR   1.25   Gb/s
Bit Error Rate BER     10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX   3   km
Total System Budget LB 12     dB























































Ordering information



BiDi SFP Transceiver
Part Number Product Description
155Mb/s SFP Transceiver
FE-BX20-SM1310/1550 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
FE-BX40-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
FE-BX80-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
FE-BX100-SM1310/1550 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-BX10-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX100-SM1310/1550 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C
10Gbps SFP+ Transceiver
SFP-10G-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
SFP-10G-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
SFP-10G-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C
SFP-10G-BX80-SM1490/1550 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C
XFP Transceiver
XFP-BX20-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C
XFP-BX40-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C
XFP-BX60-SM1330/1270 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C



Product Show



GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 0

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 1

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 2GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 3

Packaing & Shipping

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 4





GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 5



Factory Show

GE-BX03-SM1310S 3km 1.25G SFP Transceiver 1310nm 1550nm RoHS Compliant 6
