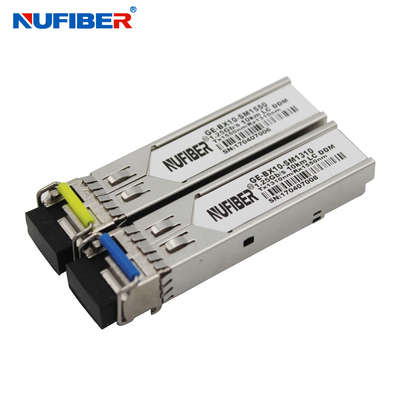

NuFiber’s GE-BX20-SM1310 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.
Features
Applications
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1270 | 1310 | 1600 | nm | |
| Spectral Width(RMS) | σRMS | 4 | nm | |||
| Optical Output Power | Pout | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
| Total Jitter Contribution | TX Δ TJ | 0.284 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -3 | dBm | 4 | ||
| RX Sensitivity | Sen | -24 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -40 | dBm | |||
| RX_LOS De-assert | LOS D | -25 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 1.25 | Gb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 20 | km | |||
| Total System Budget | LB | 14 | dB | |||
Ordering information
| Model | Description |
| GE-SX-MM850 | 1.25G MM Dual fiber 850nm SX DDM LC 0.5km |
| GE-SX-MM1310 | 1.25G MM Dual fiber 1310nm SX DDM LC 2km |
| GE-LX20-SM1310 | 1.25G SM Dual fiber 1310nm LX DDM LC 20km |
| GE-EX40-SM1310 | 1.25G SM Dual fiber 1310 DFB DDM LC 40km |
| GE-ZX80-SM1550 | 1.25G SM Dual fiber 1550 DFB DDM LC 80km |
| GE-ZX120-SM1550 | 1.25G SM Dual fiber 1550 DFB DDM LC 120km |
| GE-BX03-SM1310S | 1.25G 1310nmTx/1550nmRx BIDI SMF SC 3KM |
| GE-BX03-SM1550S | 1.25G 1550nmTx/1310nmRx BIDI SMF SC 3KM |
| GE-BX20-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 20KM |
| GE-BX20-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 20KM |
| GE-BX40-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 40KM |
| GE-BX40-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 40KM |
| GE-BX60-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 60KM |
| GE-BX60-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 60KM |
| GE-BX80-SM1310 | 1.25G 1490nmTx/1550nmRx BIDI SMF LC 80KM |
| GE-BX80-SM1550 | 1.25G 1550nmTx/1490nmRx BIDI SMF LC 80KM |
| GE-BX120-SM1490 | 1.25G 1490nmTx/1550nmRx BIDI SMF LC 120KM |
| GE-BX120-SM1550 | 1.25G 1550nmTx/1490nmRx BIDI SMF LC 120KM |
