MOQ: | 1 piece |
Standard Packaging: | 10pcs/plastic bag,500pcs/carton, carton size: 455*328*280mm |
Delivery Period: | Within 1-3 work days |
Payment Method: | L/C, T/T, Western Union,Credit Card |
Supply Capacity: | 100,000 pcs per month |

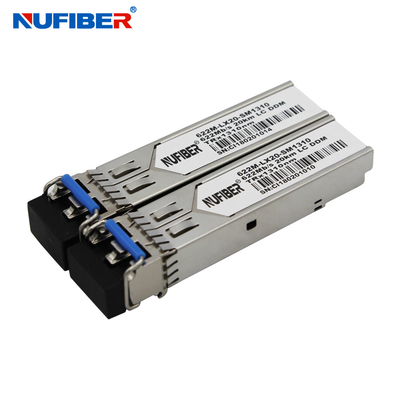

NuFiber’s 622M-LX20-SM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 13dB link budge ensure this module SONET OC-12/SDH STM-4 20Km application.
►SONET OC-12/SDH STM-4
►Fast Ethernet
►Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Transmitter Section: | ||||||
Center Wavelength | λc | 1280 | 1310 | 1355 | nm | |
Spectral Width | σ | 4 | nm | |||
Optical Output Power | Pout | -15 | -8 | dBm | 1 | |
Optical Rise/Fall Time | tr / tf | 300 | ps | 2 | ||
Extinction Ratio | ER | 8.2 | dB | |||
Generated Jitter (peak to peak) | JTXp-p | 0.07 | UI | 3 | ||
Generated Jitter (rms) | JTXrms | 0.07 | UI | 3 | ||
Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) | |||||
Receiver Section: | ||||||
Optical Input Wavelength | λc | 1260 | 1600 | nm | ||
Receiver Overload | Pol | -8 | dBm | 4 | ||
RX Sensitivity | Sen | -28 | dBm | 4 | ||
RX_LOS Assert | LOS A | -45 | dBm | |||
RX_LOS De-assert | LOS D | -29 | dBm | |||
RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
General Specifications: | ||||||
Data Rate | BR | 622 | Mb/s | |||
Bit Error Rate | BER | 10-12 | ||||
Max. Supported Link Length on 9/125μm SMF@622Mb/s | LMAX | 20 | km | |||
Total System Budget | LB | 13 | dB |
Products Show
Packing&Shipping
Factory Show
Ordering Information
Dual Fiber SFP Transmitter | |
Part Number | Product Description |
155Mbp/s SFP Transmitter | |
FE-SX-MM850 | 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C |
FE-SX-MM1310 | 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
FE-LX20-SM1310 | 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
FE-LX40-SM1310 | 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
FE-LX80-SM1550 | 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
FE-LX120-SM1550 | 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
1.25Gbps SFP Transmitter | |
GE-SX-MM850 | 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C |
GE-SX-MM1310 | 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
GE-LX20-SM1310 | 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
GE-LX40-SM1310 | 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
GE-LX60-SM1550 | 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C |
GE-LX80-SM1550 | 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
GE-LX120-SM1550 | 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
10Gbps SFP Transmitter | |
SFP+-10GB-SR | 10G SFP+ SR Multi mode dual fiber LC 850nm 300M |
SFP+-10GB-LRM | 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M |
SFP+-10GB-LR | 10G SFP+ LR Single mode dual fiber LC 1310nm 20km |
SFP+-10GB-ER | 10G SFP+ER Single mode dual fiber LC 1550nm 40km |
SFP+-10GB-ZR | 10G SFP+ZR Single mode dual fiber LC 1550nm 80km |
SFP+10G40-CWDM | 1470 ~1610nm CWDM SFP+ 40km |
SFP+10G80-CWDM | 1470~1570nm CWDM SFP+ 80km |
SFP+10G80-CWDM | 1590~1610nm CWDM SFP+ 80km |
SFP+10G40-DWDM | DWDM SFP+ 40km |
SFP+10G80-DWDM | DWDM SFP+ 80km |
NF-CWDM-XFP40 | 1470 ~1610nm CWDM XFP 40km |
NF-CWDM-XFP80 | 1470~1570nm CWDM XFP 80km |
NF-CWDM-XFP80 | 1590~1610nm CWDM XFP 80km |
NF-DWDM-XFP40 | DWDM XFP 40km |
NF-DWDM-XFP80 | DWDM XFP 80km |
NF-DWDM-XFP100 | DWDM XFP100km |
