MOQ: | 1 piece |
Standard Packaging: | 1 piece/packing box with spongy filler, 20pcs per standard export carton |
Delivery Period: | 1~2 work days for sample order |
Payment Method: | Western Union, T/T, L/C |
Supply Capacity: | 1000 pcs per Month |
Managed Industrial Switch with 4*10/100/1000M UTP+2*1000M SFP port DIN-Rail,Support SNMP WEB
Overview
NuFiber's NF524GM-SFP series is the 10/100/1000Mbps managed industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Features
Technical Specification
Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch (2F+4TP) |
Model No. | NF524GM-SFP |
Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
LEDs | Power, network, fiber |
Power supply |
Input voltage: DC9-36V No-load power consumption: 5W Reverse polarity protection: support |
Environment |
Working temperature:-40°~ 85°C Storage temperature:-40°~ 85°C Working humidity:10%~90%,non-condensing Storage humidity:10%~95%,non-condensing |
Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
Safety |
CE Mark ,commercial CE/LVD EN60950 |
Mechanical information |
Shell:Corrugated metal shell Safety class:IP44 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting |
Warranty | Replacement within 1 year; |
Ordering information
Model | Description |
NF512GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF514GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF516GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 6 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF518GM-SFP | Managed Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF522GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 2 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF524GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF526GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 6 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF528GM-SFP | Managed Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF544GM-SFP | Managed Industrial 10/100/1000M 4 SFP port + 4 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |
NF548GM-SFP | Managed Industrial 10/100/1000M 4 SFP port + 8 RJ45 port, DIN Rail type, DC9~36V, exclude power adapter and SFP module |

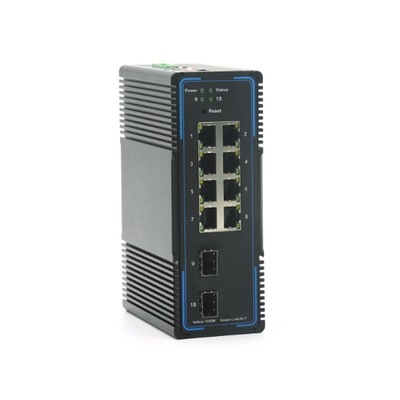

Product Picture
Connection diagram:
Support RING Network:
Factory Show
Packing&Shipping
Unmanaged Ordering List:
10/100Mbps Industrial Ethernet switch | |
NF511F-xx | 1*10/100Base-Tx to 1*100Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF512F-xx | 2*10/100Base-Tx to 1*100Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF514F-xx | 4*10/100Base-Tx to 1*100Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF524F-xx | 4*10/100Base-Tx to 2*100Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF505F | 5*10/100Base-Tx RJ45 ports, DC10~57V power |
NF508F | 8*10/100Base-Tx RJ45 ports, DC10~57V power |
10/100/1000Mbps Industrial Ethernet switch | |
NF511G-xx | 1*10/100/1000Base-Tx to 1*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF512G-xx | 2*10/100/1000Base-Tx to 1*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF514G-xx | 4*10/100/1000Base-Tx to 1*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF524G-xx | 4*10/100/1000Base-Tx to 2*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF518G-xx | 8*10/100/1000Base-Tx to 1*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF528G-xx | 8*10/100/1000Base-Tx to 2*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF548G-xx | 8*10/100/1000Base-Tx to 4*1000Base-FX, MMF or SMF, 2~100km, DC10~57V power |
NF505G | 5*10/100/1000Base-Tx RJ45 ports, DC10~57V power |
NF508G | 8*10/100/1000Base-Tx RJ45 ports, DC10~57V power |
Note: Fiber connector: SC/FC/ST/LC(SFP) available ; Distance:0-100km available; POE or Non-POE function available; Power input: For non-POE:DC10~47V; for POE:DC48~57V Unmanaged or Managed available |
