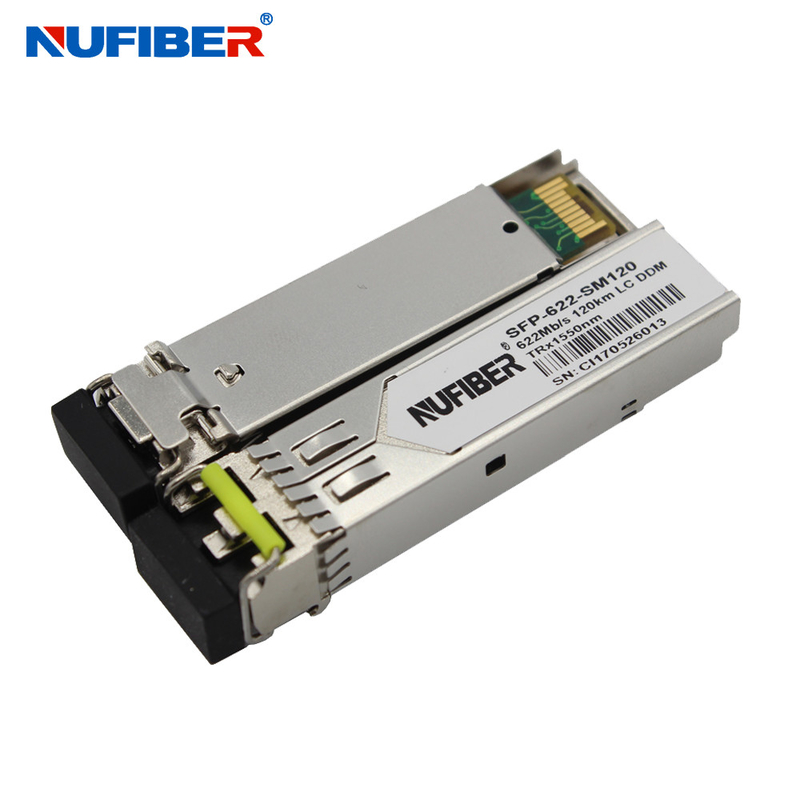

NuFiber’s 622M-BX80-SM1490Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550nm DFB laser, up to 25dB link budge ensure this module SONET OC-12/SDH STM-4 80Km application.
►SONET OC-12/SDH STM-4
►Fast Ethernet
►Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Transmitter Section: | ||||||
Center Wavelength | λc | 1530 | 1550 | 1570 | nm | |
Spectral Width | σ | 1 | nm | |||
Optical Output Power | Pout | -3 | +2 | dBm | 1 | |
Optical Rise/Fall Time | tr / tf | 300 | ps | 2 | ||
Extinction Ratio | ER | 10 | dB | |||
Generated Jitter (peak to peak) | JTXp-p | 0.07 | UI | 3 | ||
Generated Jitter (rms) | JTXrms | 0.07 | UI | 3 | ||
Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) | |||||
Receiver Section: | ||||||
Optical Input Wavelength | λc | 1260 | 1600 | nm | ||
Receiver Overload | Pol | -8 | dBm | 4 | ||
RX Sensitivity | Sen | -28 | dBm | 4 | ||
RX_LOS Assert | LOS A | -45 | dBm | |||
RX_LOS De-assert | LOS D | -29 | dBm | |||
RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
General Specifications: | ||||||
Data Rate | BR | 622 | Mb/s | |||
Bit Error Rate | BER | 10-12 | ||||
Max. Supported Link Length on 9/125μm SMF@622Mb/s | LMAX | 80 | km | |||
Total System Budget | LB | 25 | dB |
Ordering Information
BiDi SFP Transceiver | ||
Part Number | Product Description | |
155Mb/s SFP Transceiver | ||
FE-BX20-SM1310/1550 | 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
FE-BX40-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
FE-BX80-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
FE-BX100-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
1.25Gbps SFP Transceiver | ||
GE-BX10-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C | |
GE-BX20-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
GE-BX40-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
GE-BX60-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C | |
GE-BX80-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
GE-BX100-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
10Gbps SFP+ Transceiver | ||
SFP-10G-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
SFP-10G-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
SFP-10G-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |
SFP-10G-BX80-SM1490/1550 | 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C | |
XFP Transceiver | ||
XFP-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
XFP-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
XFP-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C |
