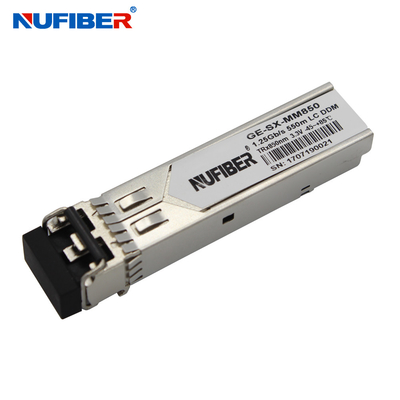

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable

MOQ: 1 piece
Standard Packaging: 10pcs/plastic bag, 200pcs/carton
Delivery Period: 1-3 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC
Model Number
GE-SX-MM850
Speed:
1.25Gbs
Wavelength:
850nm
Distance:
0.55KM
Connector:
LC
DDM:
Support
Fiber Type:
Multimode Dual Fiber
Power Supply:
3.3V
Compatibility:
Cisco, Huawei, HP...
Manufacturer:
Yes
Working Temp.:
0~70℃
Warranty:
1 Year
Highlight:

550m 850nm 1.25G SFP Transceiver

,

1.25G SFP Transceiver Dual Fiber Multimode

,

550m sfp hot pluggable

Product Description

1.25Gb/s SFP Transceiver dual fiber multimode 550m 850nm LC DDM

Description

NuFiber’s GE-SX-MM850 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 850 nm VCSEL laser, up to 9dB link budge ensure this module 1000Base Ethernet 550m application.



Features



  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 550m on 50/125μm MMF
  • 850nm VCSEL laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free



Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-SX Ethernet
  • 1×Fiber Channel
  • Other Optical Links



Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)



Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 840 850 860 nm
Spectral Width(RMS) σRMS     0.85 nm
Optical Output Power Pout -9   -3 dBm 1
Extinction Ratio ER 8.2     dB
Optical Rise/Fall Time tr / tf     260 ps 2
Relative Intensity Noise RIN     -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 770   860 nm
Receiver Overload Pol 0     dBm 4
RX Sensitivity Sen     -18 dBm 4
RX_LOS Assert LOS A -29     dBm
RX_LOS De-assert LOS D     -19 dBm
RX_LOS Hysteresis LOS H 0.5     dB
General Specifications:
Data Rate BR   1.25   Gb/s
Bit Error Rate BER     10-12
Max. Supported Link Length on 50/125μm MMF@1.25Gb/s LMAX   550   m
Total System Budget LB 8     dB






















































Ordering information



Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM 1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM 1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM 1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM DWDM SFP+ 40km
SFP+10G80-DWDM DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx 1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx 1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx 1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx DWDM XFP 40km
XFP-DWDM-80xx DWDM XFP 80km
XFP-DWDM-100xx DWDM XFP100km



Product Show

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 0550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 1550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 2

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 3

Packaing & Shipping

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 4





550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 5



Factory Show

550m 850nm 1.25G SFP Transceiver Dual Fiber Multimode Hot Pluggable 6
