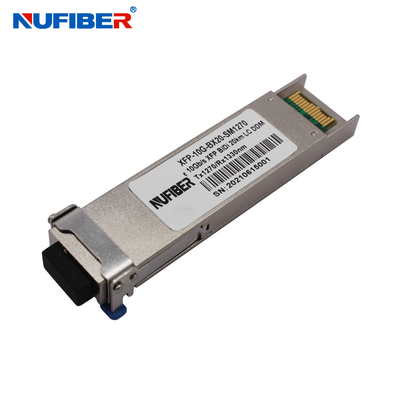

Single Fiber SM Xfp Fiber Transceiver 10Gb/S 40km Telecommunication Equipment

Single Fiber SM Xfp Fiber Transceiver 10Gb/S 40km Telecommunication Equipment

Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC Rohs
Model Number: XFP-10G-BX40-SM1270

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 10pcs/plastic bag, 500pcs/carton
Delivery Time: Within 1-3 work days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10,000 pcs per month
Get Best Price Contact Now

Detail Information

Data Rate: 10Gb/s Wavelength: 1270/1330nm
Distance: 40km Connector: LC
DDM: Support Fiber Type: Single Fiber SM
Power Supply: 3.3V Working Temperature: 0~70℃
Warranty: 3 Years Compatibility: Cisco, HP, Huawei, Finisar...
Manufacturer: Yes
High Light:

SM Xfp Fiber Transceiver 10Gb/S

,

Single Fiber Xfp Fiber Transceiver 40km

Product Description

10Gb/s XFP Transceiver XFP-10G-BX40-SM1270 singlefiber SM 40km LC DDM

Description

NuFiber’ XFP-BX40-SM1330/1270 Bi-directional 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae,SONET OC-192 /SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.



Features

  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Single LC for Bi-directional Transmission
  • Maximum link length of 40km
  • Built-in 1270/1330 WDM
  • Uncooled 1270nm or 1330nm CWDM DFB Laser
  • Power dissipation <2W
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • Very low EMI and excellent ESD protection
  • RoHS Compliant Part



Applications

  • 10GBASE-LR/LW Ethernet
  • SONET OC-192 /SDH
  • 1200-SM-LL-L 10G Fibre Channel



Optical Parameters


Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Operating Date Rate BR 9.95   11.3 Gb/s
Bit Error Rate BER     10-12
Maximum Launch Power PMAX -1   +3 dBm 1
Optical Center Wavelength XFP-BX40-SM1270 λ 1260 1270 1280 nm
XFP-BX40-SM1330 1320 1330 1340
Optical Extinction Ratio ER 3.5     dB
Spectral Width Δλ     1 nm
Sidemode Supression ratio SSRmin 30     dB
Rise/Fall Time (20%~80%) Tr/Tf     50 ps
Average Launch power of OFF Transmitter POFF     -30 dBm
Tx Jitter Txj Compliant with each standard requirements
Optical Eye Mask   IEEE802.3ae 2
Receiver
Operating Date Rate BR 9.95   11.3 Gb/s
Receiver Sensitivity Sen     -16 dBm 2
Maximum Input Power PMAX 0     dBm 2
Optical Center Wavelength XFP-BX40-SM1270 λC 1320 1330 1340 nm
XFP-BX40-SM1330 1260 1270 1280
Receiver Reflectance Rrx     -27 dB
LOS De-Assert LOSD     -17 dBm
LOS Assert LOSA -27     dBm
LOS Hysteresis LOSH 0.5   5 dB






























































Ordering information



Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km
