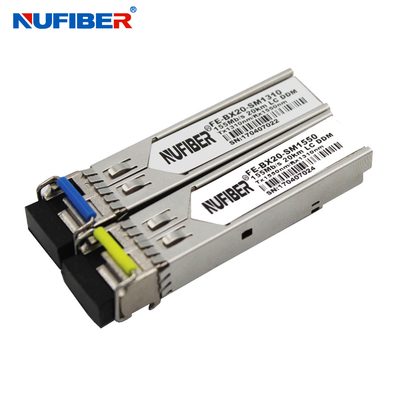

NuFiber’s FE-BX80-SM1490 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1490 nm DFB laser, up to 29dB link budge ensure this module SONET OC-3 / SDH STM -1 80km application.
►SONET OC-3/SDH STM-1
►Fast Ethernet
►Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1470 | 1490 | 1510 | nm | |
| Spectral Width | σ | 1 | nm | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Optical Output Power | Pout | -5 | 0 | dBm | 1 | |
| Optical Rise/Fall Time | tr / tf | 2 | ns | 2 | ||
| Extinction Ratio | ER | 10 | dB | |||
| Generated Jitter (peak to peak) | JTXp-p | 0.07 | UI | 3 | ||
| Generated Jitter (rms) | JTXrms | 0.007 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -8 | dBm | 4 | ||
| RX Sensitivity | Sen | -34 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -45 | dBm | |||
| RX_LOS De-assert | LOS D | -35 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 155 | Mb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@155Mb/s | LMAX | 80 | km | |||
| Total System Budget | LB | 29 | dB | |||
