CE 3km 1.25G SFP Transceiver ,1310nm LC Sfp Module Single Mode
Product Details:
Place of Origin: | China |
Brand Name: | NuFiber |
Certification: | CE FCC |
Model Number: | GE-BX03-SM1310/1550 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pair |
---|---|
Packaging Details: | 10pcs/plastic bag, 200pcs/carton |
Delivery Time: | 1-3 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000 pcs per month |
Detail Information |
|||
Speed: | 1.25Gb/s | Wavelength: | 1310nm/1550nm |
---|---|---|---|
Distance: | 3KM | Connector: | LC |
DDM: | Support | Fiber Type: | Single Mode Single Fiber |
Power Supply: | 3.3V | Compatibility: | Cisco, Huawei, HP... |
Working Temperature: | 0~70℃ | Warranty: | 3 Years |
High Light: | CE 3km 1.25G SFP Transceiver,CE LC Sfp Module Single Mode,1.25G SFP Transceiver Single Mode |
Product Description
1.25Gb/s SFP Transceiver single fiber singlemode 3km 1310nm LC DDM
Description
NuFiber’s GE-BX03-SM1310/1550 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 3km application.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Single LC connector
- Up to 3 km on 9/125μm SMF
- 1310nm FP laser transmitter
- 1550nm PIN photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial Version available:
- operating temperature range:
- Industrial Grade:-40°C to 85°C
- Extended grade:-5°C to 85°C
- Commercial grade:-0°C to 70°C
- RoHS compliant and Lead Free
Applications
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1×Fiber Channel
- Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
Transmitter Section: | ||||||
Center Wavelength | λc | 1270 | 1310 | 1600 | nm | |
Spectral Width(RMS) | σRMS | 4 | nm | |||
Optical Output Power | Pout | -9 | -3 | dBm | 1 | |
Extinction Ratio | ER | 9 | dB | |||
Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
Relative Intensity Noise | RIN | -120 | dB/Hz | |||
Total Jitter Contribution | TX Δ TJ | 0.284 | UI | 3 | ||
Eye Mask for Optical Output | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
Receiver Section: | ||||||
Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
Receiver Overload | Pol | -3 | dBm | 4 | ||
RX Sensitivity | Sen | -24 | dBm | 4 | ||
RX_LOS Assert | LOS A | -40 | dBm | |||
RX_LOS De-assert | LOS D | -25 | dBm | |||
RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
General Specifications: | ||||||
Data Rate | BR | 1.25 | Gb/s | |||
Bit Error Rate | BER | 10-12 | ||||
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 20 | km | |||
Total System Budget | LB | 14 | dB |
Ordering information
BiDi SFP Transceiver | ||
Part Number | Product Description | |
155Mb/s SFP Transceiver | ||
FE-BX20-SM1310/1550 | 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
FE-BX40-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
FE-BX80-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
FE-BX100-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
1.25Gbps SFP Transceiver | ||
GE-BX10-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C | |
GE-BX20-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
GE-BX40-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
GE-BX60-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C | |
GE-BX80-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
GE-BX100-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
10Gbps SFP+ Transceiver | ||
SFP-10G-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
SFP-10G-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
SFP-10G-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |
SFP-10G-BX80-SM1490/1550 | 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C | |
XFP Transceiver | ||
XFP-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
XFP-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
XFP-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C |

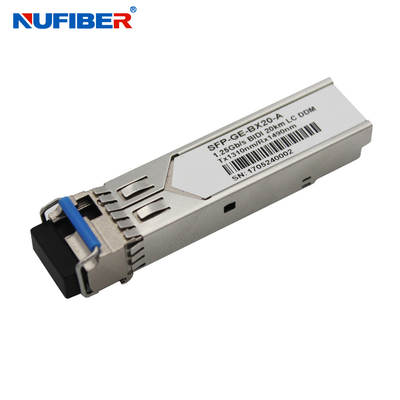

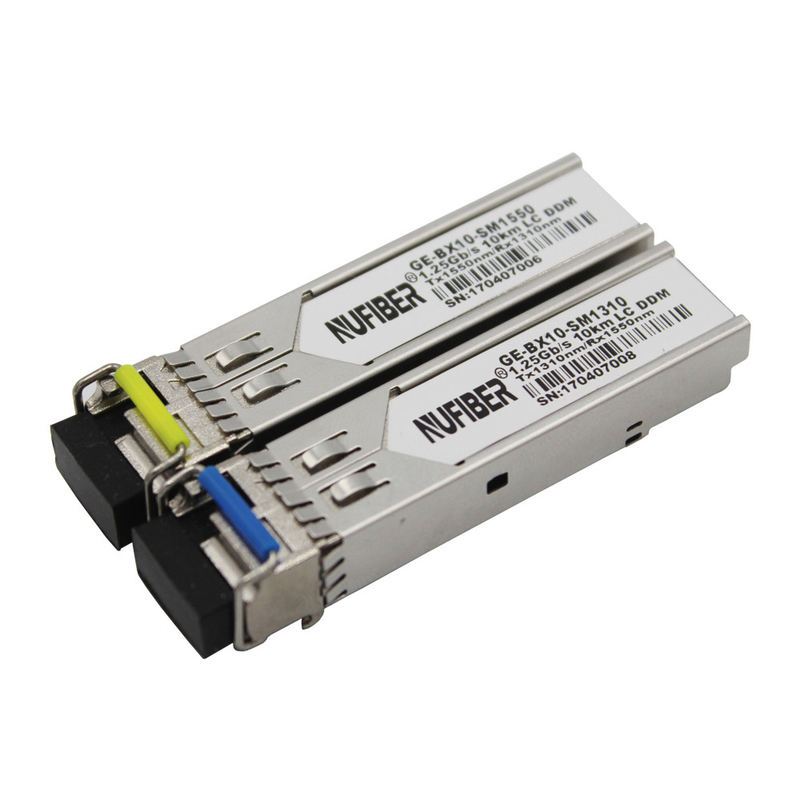

Product Show
