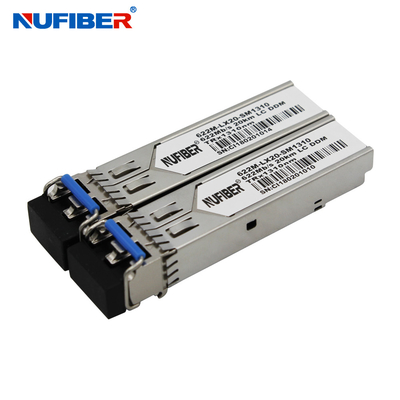

NuFiber’s 622M-LX40-SM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 13dB link budge ensure this module SONET OC-12/SDH STM-4 40Km application.
►SONET OC-12/SDH STM-4
►Fast Ethernet
►Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1280 | 1310 | 1355 | nm | |
| Spectral Width | σ | 4 | nm | |||
| Optical Output Power | Pout | -3 | +2 | dBm | 1 | |
| Optical Rise/Fall Time | tr / tf | 300 | ps | 2 | ||
| Extinction Ratio | ER | 10 | dB | |||
| Generated Jitter (peak to peak) | JTXp-p | 0.07 | UI | 3 | ||
| Generated Jitter (rms) | JTXrms | 0.07 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1260 | 1600 | nm | ||
| Receiver Overload | Pol | -8 | dBm | 4 | ||
| RX Sensitivity | Sen | -28 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -45 | dBm | |||
| RX_LOS De-assert | LOS D | -29 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 622 | Mb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@622Mb/s | LMAX | 40 | km | |||
| Total System Budget | LB | 25 | dB | |||
