1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM

Products

Ethernet over Coaxial Extender

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM

Name: 1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM
Brand: NuFiber
SKU: GE-BX60-SM1310
Rating: 4.8 (130 reviews)

MOQ:	1 piece
Standard Packaging:	10pcs/plastic bag, 200pcs/carton
Delivery Period:	1-3 work days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	100,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NuFiber

Certification

CE FCC

Model Number

GE-BX60-SM1310

Speed:

1.25Gbs

Wavelength:

Tx1310nmRx1490nm

Distance:

60KM

Connector:

DDM:

Support

Fiber Type:

Single Fiber Singlemode

Power Supply:

3.3V

Compatibility:

Cisco, Huawei, HP...

Manufacturer:

Yes

Working Temp.:

0~70℃

High Light:

CE 1.25G SFP Transceiver

Simplex LC DDM SFP Transceiver Module

1.25G SFP Transceiver 60km

Product Description

1.25G SFP Module Simplex SM 1310/1490nm 60km LC Gigabit WDM SFP Transceiver Compatible with Cisco

Description

NuFiber’s GE-BX60-SM1310 and GE-BX60-SM1490 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm DFB laser, up to 21dB link budge ensure this module 1000Base-EX Ethernet 60km application.

Features

Up to 1.25Gb/s Data Links
Hot-Pluggable
Single LC connector
Up to 60km on 9/125μm MMF
1310nm DFB laser transmitter
1490nm PIN photo-detector
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free

Applications

Metro/Access Networks
1.25 Gb/s 1000Base-ZX Ethernet
1×Fiber Channel
Other Optical Links

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λ_c	1270	1310	1360	nm
Spectral Width(RMS)	σ_RMS			3	nm
Optical Output Power	P_out	-9		-3	dBm	1
Extinction Ratio	ER	8.2			dB
Optical Rise/Fall Time	t_r / t_f			260	ps	2
Relative Intensity Noise	RIN			-120	dB/Hz
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λ_c	1260		1360	nm
Receiver Overload	P_ol	-3			dBm	4
RX Sensitivity	Sen			-24	dBm	4
RX_LOS Assert	LOS_A	-35			dBm
RX_LOS De-assert	LOS_D			-25	dBm
RX_LOS Hysteresis	LOS _H	0.5			dB
General Specifications:
Data Rate	BR		1.25		Gb/s
Bit Error Rate	BER			10^-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s	L_MAX		20		km
Total System Budget	LB	15			dB

Ordering information

1.25G SFP Dual fiber
GE-SX-MM850	1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310	1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310	1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310	1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550	1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550	1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550	1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25G SFP Single fiber
GE-BX10-SM1310/1550	1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C
GE-BX20-SM1310/1550	1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C
GE-BX40-SM1310/1550	1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C
GE-BX60-SM1490/1550	1.25Gbps, BiDi 1490nm/1550nm SM 60km LC, DDM 0°C~+70°C
GE-BX80-SM1490/1550	1.25Gbps, BiDi 1490nm/1550nm SM 80km LC, DDM 0°C~+70°C
GE-BX120-SM1490/1550	1.25Gbps, BiDi 1490nm/1550nm SM 120km LC, DDM 0°C~+70°C
1.25G CWDM SFP
SFP-GE-CW40-xx	1470-1610nm CWDM 40km DDM 1.25G
SFP-GE-CW60-xx	1470-1610nm CWDM 60km DDM 1.25G
SFP-GE-CW80-xx	1470-1610nm CWDM 80km DDM 1.25G
SFP-GE-CW120-xx	1470-1610nm CWDM 120km DDM 1.25G
SFP-GE-CW160-xx	1470-1610nm CWDM 160km DDM 1.25G
1.25G DWDM SFP
SFP-GE-DW40-CHxx	DWDM SFP 40km DDM 1.25G
SFP-GE-DW80-CHxx	DWDM SFP 80km DDM 1.25G
SFP-GE-DW120-CHxx	DWDM SFP 120km DDM 1.25G
SFP-GE-DW160-CHxx	DWDM SFP 160km DDM 1.25G

Product Show

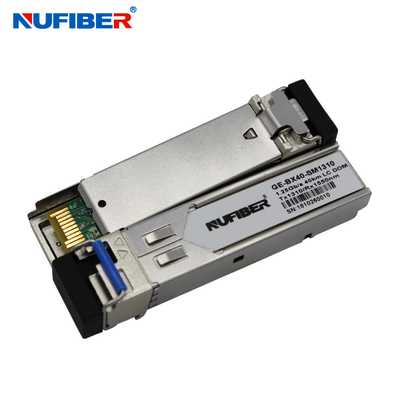

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM 0

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM 2

Packaing & Shipping

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM 3

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM 4

Factory Show

1.25g 60km Glc Bx Sm SFP Transceiver Module 1310 / 1490nm Simplex LC DDM 5

FAQ

Your any question will be responsed within 24/7.
