8 Port Gigabit Industrial Ethernet Switch , IP44 Managed POE Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | NuFiber |
| Certification: | CE |
| Model Number: | NF528GMP-SFP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Packaging Details: | 1 piece/packing box with spongy filler, 20pcs per standard export carton |
| Delivery Time: | 1~2 work days for sample order |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 pcs per Month |
|
Detail Information |
|||
| Product Name: | Managed Industrial POE Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Fiber Port: | SFP Socked | Working Temp.: | -40 ~ +85℃ |
| Function: | SNMP, Telnet, WEB Managed | Installation: | DIN-rail Type |
| Protection Grade: | IP44 | Ports: | 8x10/100/1000Base POE Ports+2x1000M SFP |
| OEM: | Accepted | Power Supply: | DC48~57V |
| High Light: | SNMP Industrial Ethernet Switch,Telnet Managed POE Switch,IP44 Managed POE Switch |
||
Product Description
Managed industrial POE Switch
8*10/100/1000M POE+2*1000M SFP, DIN-Rail, IP44, -40～85℃, DC48V-57V
Model numnber:NF528GMP-SFP
Overview
NuFiber's NF528GMP-SFP series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Features
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2 x 1000Mbps SFP fiber ports
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
- 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with
-
Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c
- Intelligent power consumption detection and classification
- SW-Ring ring network patent technology (Fault recovery time<20ms)
- IGMP Snooping, GMRP and static IGMP
- VLAN,PVLAN, control broadcast domain
- IEEE802.1p_QOS
- Port trunking, rate control, broadcast storm control
- SNMP, Telnet, WEB
- SSH,SSL,ACL, automatic MAC address bounding
- Support port mirroring
- Alarming: support ARP listening, power down, and ring-alarm
- Support link monitoring
Technical Specification
| Product Name | 10/100/1000Mbps Managed Industrial POE Switch (2F+8TP) |
| Model No. | NF528GMP-SFP |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V- 57V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class:IP40 Dimension:158 x 114.8 x 60mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; |
Ordering information
| Model | Description |
| NF512GMP-SFP | Managed Industrial 10/100/1000M POE Switch 1 SFP port + 2 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF514GMP-SFP | Managed Industrial 10/100/1000M POE Switch 1 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF516GMP-SFP | Managed Industrial 10/100/1000M POE Switch 1 SFP port + 6 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF518GMP-SFP | Managed Industrial 10/100/1000M POE Switch 1 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF522GMP-SFP | Managed Industrial 10/100/1000M POE Switch 2 SFP port + 2 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF524GMP-SFP | Managed Industrial 10/100/1000M POE Switch 2 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF526GMP-SFP | Managed Industrial 10/100/1000M POE Switch 2 SFP port + 6 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF528GMP-SFP | Managed Industrial 10/100/1000M POE Switch 2 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF544GMP-SFP | Managed Industrial 10/100/1000M POE Switch 4 SFP port + 4 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |
| NF548GMP-SFP | Managed Industrial 10/100/1000M POE Switch 4 SFP port + 8 RJ45 port, DIN Rail type, DC48-57V, exclude power adapter and SFP module |

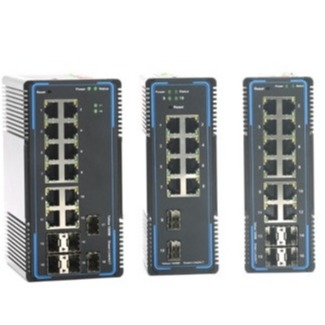

Product Picture
Connection diagram
