Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC
Model Number: NF-PSE5208A/B

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 20pcs/carton, carton size: 452*372*297mm
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Get Best Price Contact Now

Detail Information

Material: Iron Case Color: Black, Gray
Data Transfer Rate: 10/100Mbps POE Ports: 8
Fiber Port: 1 Standard: IEEE802.3af
Total Power: 65Watts Power Supply: 48VDC
OEM & ODM: Accepted
High Light:

SM 20km POE Powered Switch

,

1 SC 8 Poe Port Switch

,

NuFiber Single Fiber POE Powered Switch

Product Description

10/100M 9 ports POE Fiber Switch with 8 POE ports 1 SC port,single fiber SM 20km Tx: 1310nm Rx: 1550nm IEEE802.3af

Description

NuFiber® PSE-5108 PoE switch can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs), it’s 9 10/100Mbps Auto-Negotiation RJ45 ports with 8 PoE (Power over Ethernet) ports,the distance of power supply is 100 Meter. There is no need to worry about the damage of standard POE or Non-POE Devices, it will be power off when the POE Device is not connecting. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Features

  • 9 10/100Mbps Auto-Negotiation RJ45 ports with 8 POE port
  • Complies with IEEE802.3af/at standards
  • Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
  • Bandwidth 1.8Gbps
  • Supports PoE power up to 25.5W for each PoE port
  • Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
  • LED indicators for monitoring power, link,activity and speed
  • 48V 3A power adapter

Specifications

Standard and Protocols IEEE802.3, 802.3u, 802.3af, 802.3x
CSMA/CD, TCP/IP
Basic Function Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and back-pressure for Half-Duplex Mode
Bandwidth 1.8 Gbps
Power support Max power: 25.5W for each POE port
48V 3A Power adapter
Transmission Method Store-and-Forward
Ports 9 10/100/Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators Power, Link/Act ( 10/100Mbps)
Safety & Emission FCC, CE, RoHS
Environment

Operating Temperature: 0°C~50°C

Storage Temperature: -20°C~70°C

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Product Size: 225*121*33 mm

Ordering Information

Part number Product description
NF-PSE5104 10/100M 4 POE ports 1 Uplink port, IEEE802.3af/at
NF-PSE5204C 10/100Mbps,4 ports PoE+1fiber port MM, Dual fiber,2KM
NF-PSE5204C20 10/100Mbps,4 ports PoE+1fiber port SM, Dual fiber,20KM
NF-PSE5204C20A/B 10/100Mbps,8 ports PoE+1fiber port SM, Single fiber,20KM
NF-PSE5108 10/100M 8 POE ports 1 Uplink port, IEEE802.3af/at
NF-PSE5208C 10/100Mbps,8 ports PoE+1fiber port MM, Dual fiber,2KM
NF-PSE5208C20 10/100Mbps,8 ports PoE+1fiber port SM, Dual fiber,20KM
NF-PSE5208C20A/B 10/100Mbps,8 ports PoE+1fiber port SM, Single fiber,20KM


Connection Diagram

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 0



Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 1

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 2

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 3

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 4

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 5

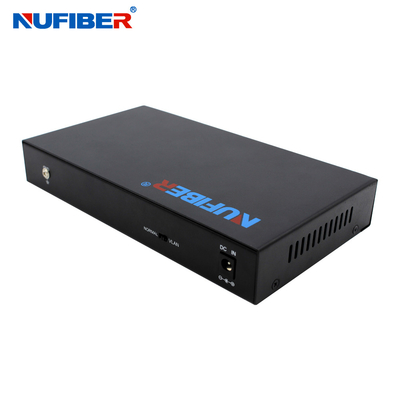

Product Show

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 6

Packing Information

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 7

Shipping Method

Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 8

FAQ:



Single Fiber SM 20km POE Powered Switch 1 SC 8 Poe Port Switch 9
