2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input

Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC Rohs
Model Number: NF-A4002F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 27pcs/carton, carton size: 55.6*32.8*43.5cm
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Gigabit Fiber Ethernet Switch Material: Iron Case
Ports: 2 Rj45 Port+4 SFP Slot Speed: 10/100/1000Mbps
Power Supply: DC5V 2A OEM&ODM: Accepted
Fiber Connector: LC/SC With SFP Module Fiber Type: Dual Fiber Or Single Fiber Optional
Working Temperature: 0 °C~ +70 °C Warranty: 3 Years
High Light:

Sfp Port Switch 16V

,

Sfp Media Converter 16V

,

2 RJ45 Port 4 Sfp Port Switch

Product Description

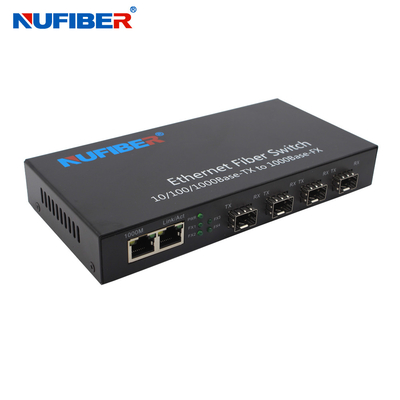

10/100/1000M 4 SFP Port + 2 RJ45 Port Fiber Optic Ethernet Switch Media converter

Model: NF-A4002F

Description:

The NF-A4002F is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has two 10/100/1000Mbps Ethernet ports and four 1.25Gbps fiber ports. Users can choose different SFP modules in need. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.

Key features:

(1) Support the switch between 10/100/1000Base-T and 1000Base-SX/LX;

(2) 4*1.25Gbps full-duplex fiber ports and 2*1000M Ethernet ports with auto-negotiation function;

(3) Support MDI/MDIX and half/full-duplex with auto-negotiation function;

(4) Each port has the complete LED Indicator light ;

(5) Support IEEE802.1d Spanning Tree;

(6) Support IEEE802.1q and VLAN division;

(7) Support high performance QoS function on each port;

(8) Support 5-16V voltage input;

(9) Require no configuration and will instantly operate as soon as you power it up;

(10) Use Marvel chip, stable and reliable;

(11) Low power consumption chip with heat sink built in to ensure longtime efficient operation.





Technical Specifications:



Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE802.1q VLAN

Certifications CCC, CE, FCC, RoHS
Ethernet Port

Connector: RJ45

Data Rate: 10/100/1000M

Distance: 100m

UTP Type: UTP-5E or higher level

Fiber Port

Connector: SFP slot

Data Rate: 1.25Gbps

Optical Wavelength: 850nm/1310nm/1490nm/1550nm

Distance: 550m~100km

Performance

Processing Type : Store and Forward

MAC Table Size: 1K

Buffer Space: 1Mbit

Back bandwidth: 14G

Time Delay:<20μs

Power

Power type: external power supply

Input Voltage: AC100V~240V 50/60Hz

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1.8W~5W

Environment

Storage Temperature: -40~70℃

Operating Temperature: -10~55℃

Relative Humidity: 5-90% ( no condensation)

Warranty 3 year
Physical Characteristics

Dimension: 160×84×26mm

Weight: 0.30kg

Color: Metal, Black


Product show:

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 02 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 12 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 22 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 3



Connection Diagram:

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 4



Factory show:

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 5



Packing & Shipping:

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 6

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 7



FAQ:

2 RJ45 Port 4 Sfp Port Switch Media Converter Support 5-16V Voltage Input 8
