OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm

MOQ: 1 piece
Standard Packaging: 40pcs/carton, carton size: 55.6*32.8*43.5cm
Delivery Period: 1-3 work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 5,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC Rohs
Model Number
NF-S1008C20A/B
Product Name:
Gigabit Fiber Ethernet Switch
Material:
Iron Case
Ports:
8 Rj45 +1 Fiber Port
Speed:
10/100/1000Mbps
Power Supply:
DC5V 3A
OEM&ODM:
Accepted
Fiber Connector:
SC/FC/ST Optional
Fiber Type:
Single Mode Single Fiber
Working Temperature:
0 °C~ +70 °C
Warranty:
3 Years
Highlight:

ODM Rj45 8 Port Network Switch

,

8 Port Network Switch SC 1310nm

Product Description

1000M 8-port Rj45+1 fiber port with single fiber SC 1310nm/1550nm Optic Fiber Ethernet Switch

Model: NF-S1008C20A/B



Description:

This Gigabit Ethernet Fiber Switch has 8 10/100/1000M UTP ports and 1 fiber port or 1 1000M SFP slot. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

Key features:

► Converts optical/electrical Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports

   ► Auto negotiation function supports UTP ports to auto 10/100/1000M and Full duplex/Half Duplex

► Supports the max 1536 bytes frame

► Small power consumption (3W), low heat, good stability





Technical Specifications:



Standards IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
Number of Ports 8 Port 10/100/1000Base-Tx and 1 Port 1000Base-Fx
Transmission Rate 10 Mbps: 14880 pps, 100Mbps: 148800 pps, 1000Mbps:1488000 pps
Switching Mode Store-and-Forward
Flow Control Mode IEEE 802.3x full-duplex flow control and back pressure flow control
MAC address 1K
Frame buffer memory 512Kb RAM
Bandwidth 12G, can be transmitted to achieve non-blocking wire-speed
LED Status Indicator LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function
Cable Support UTP cable: 3, 4 or Cat. 5,cat6 (the max distance up to 100m)
Fiber cable:
Multi-mode Fiber: 50/125, 62.5/125μm(the max distance up to 550m)
Single mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
Power Supply AC100 ~240V, 50~60Hz; DC5V 2A
Operating Temperature 0 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Storage Humidity 5% to 90% RH

Order Information:



Model Product description
NF-S1008C 10/100/1000M 8 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, MM, 0.55km, SC
NF-S1008C20 10/100/1000M 8 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 20km, SC
NF-S1008C20A/B

10/100/1000M 8 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 20km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

NF-A1008F 10/100/1000M 8 RJ45 ports + 1-port SFP slot
NF-S1008C40 10/100/1000M 8 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 40km, SC
NF-S1008C40A/B

10/100/1000M 8 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 40km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

NF-S1008C60 10/100/1000M 8 RJ45 ports + 1-port 1000Base-FX, Dual Fiber, SM, 60km, SC
NF-S1008C60A/B

10/100/1000M 8 RJ45 ports +1-port 1000Base-FX, Single Fiber, SM, 60km, SC

A: TX:1310nm/ RX:1550nm

B: TX:1550nm/ RX:1310nm

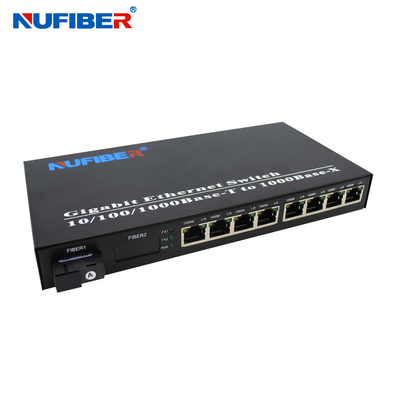

Product show:

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 0OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 1OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 2OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 3

Connection Diagram:

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 4



Factory show:

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 5



Packing & Shipping:

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 6

OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 7





OEM ODM Rj45 8 Port Network Switch With Single Fiber SC 1310nm 1550nm 8
