| MOQ: | 1 piece |
| Price: | USD 38~ 45 per piece |
| Standard Packaging: | 10pcs/plastic bag, 500pcs/carton |
| Delivery Period: | Within 1-3 work days |
| Payment Method: | L/C, T/T, Western Union,Credit Card |
| Supply Capacity: | 10,000 pcs per month |

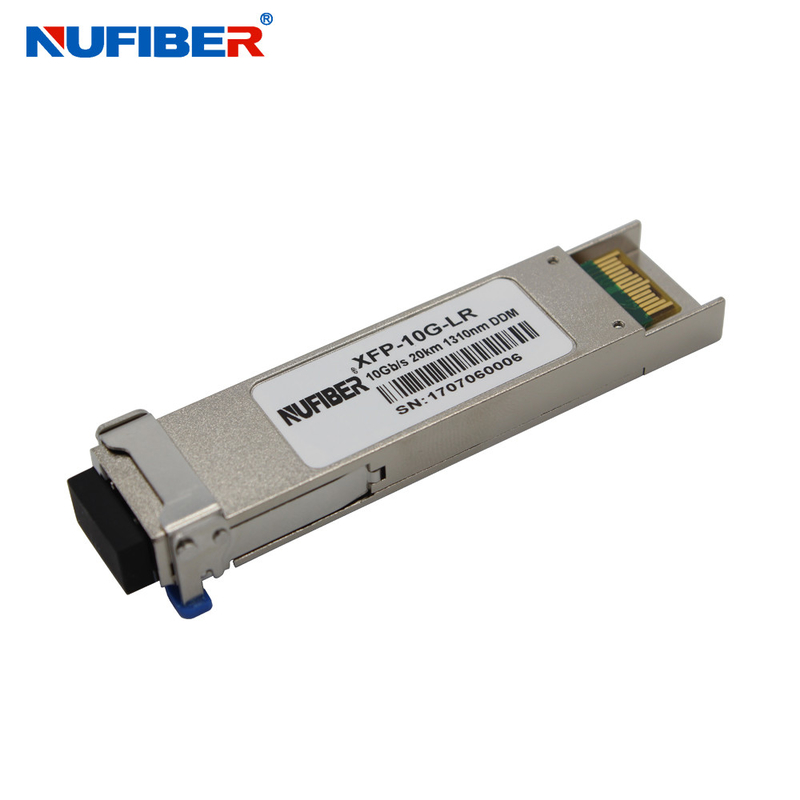

10Gb/s XFP Transceiver XFP-10G-LR dual fiber singlemode 10km 1310nm LC DDM
NuFiber XFP-10G-LR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Features
Applications
Optical Parameters
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Operating Date Rate | BR | 9.95 | 11.3 | Gb/s | ||
| Bit Error Rate | BER | 10-12 | ||||
| Maximum Launch Power | PMAX | -8.2 | 0.5 | dBm | 1 | |
| Optical Wavelength | λ | 1260 | 1310 | 1355 | nm | |
| Optical Extinction Ratio | ER | 3.5 | dB | |||
| Spectral Width@-20dB | Δλ | 1 | nm | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Rise/Fall Time (20%~80%) | Tr/Tf | 35 | ps | |||
| Average Launch power of OFF Transmitter | POFF | -30 | dBm | |||
| Tx Jitter | Txj | Compliant with each standard requirements | ||||
| Optical Eye Mask | IEEE802.3ae | 2 | ||||
| Receiver | ||||||
| Operating Date Rate | BR | 9.95 | 11.3 | Gb/s | ||
| Receiver Sensitivity | Sen | -12.6 | dBm | 2 | ||
| Maximum Input Power | PMAX | 0 | dBm | 2 | ||
| Optical Center Wavelength | λC | 1260 | 1355 | nm | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
| LOS De-Assert | LOSD | -13 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | 5 | dB | ||
Ordering information
| Dual Fiber SFP Transceiver | |
| Part Number | Product Description |
| 155Mbp/s SFP Transceiver | |
| FE-SX-MM850 | 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-SX-MM1310 | 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| FE-LX20-SM1310 | 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| FE-LX40-SM1310 | 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| FE-LX80-SM1550 | 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| FE-LX120-SM1550 | 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 1.25Gbps SFP Transceiver | |
| GE-SX-MM850 | 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C |
| GE-SX-MM1310 | 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C |
| GE-LX20-SM1310 | 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C |
| GE-LX40-SM1310 | 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C |
| GE-LX60-SM1550 | 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C |
| GE-LX80-SM1550 | 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C |
| GE-LX120-SM1550 | 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C |
| 10Gbps SFP Transceiver | |
| SFP+-10GB-SR | 10G SFP+ SR Multi mode dual fiber LC 850nm 300M |
| SFP+-10GB-LRM | 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M |
| SFP+-10GB-LR | 10G SFP+ LR Single mode dual fiber LC 1310nm 20km |
| SFP+-10GB-ERM | 10G SFP+ER Single mode dual fiber LC 1310nm 40km |
| SFP+-10GB-ER | 10G SFP+ER Single mode dual fiber LC 1550nm 40km |
| SFP+-10GB-ZR | 10G SFP+ZR Single mode dual fiber LC 1550nm 80km |
| XFP Transceiver | |
| XFP-10G-SR | 10G XFP SR Multi mode dual fiber LC 850nm 300M |
| XFP-10G-LRM | 10G XFP LRM Single mode dual fiber LC 1310nm 10kM |
| XFP-10G-LR | 10G XFP LR Single mode dual fiber LC 1310nm 20km |
| XFP-10G-ER | 10G XFP ER Single mode dual fiber LC 1550nm 40km |
| XFP-10G-ZR | 10G XFP ZR Single mode dual fiber LC 1550nm 80km |
