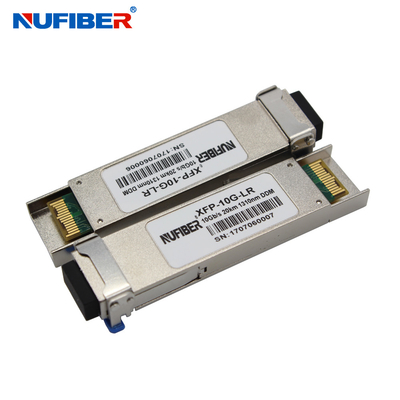

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector

MOQ: 2 piece
Standard Packaging: 10pcs/plastic bag, 200pcs/carton
Delivery Period: Within 1-3 work days
Payment Method: L/C, T/T, Western Union,Credit Card
Supply Capacity: 10,000 pcs per month
Detail Information
Place of Origin
China
Brand Name
NuFiber
Certification
CE FCC Rohs
Model Number
XFP-10G-LR
Product Name:
XFP Module
Wavelength:
1310nm
Distance:
20km
Connector:
LC Interface
DDM:
Support
Fiber Type:
Single Mode Duplex LC
Power Supply:
3.3V
Working Temperature:
0~70℃
Warranty:
3years
Compatible:
Any Brand
Manufacturer:
Yes
Highlight:

Duplex LC 10G XFP Transceiver

,

10G XFP Transceiver 20km 1310nm

Product Description

High quality XFP-10GB-LR 10Gb/s XFP 20km with SM Duplex LC 1310nm XFP Transceiver Module



Hot Pluggable, Duplex LC, 1310nm, DFB LD, Single mode

Description:

NuFiber XFP-10G-LR Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.



Features:



1. Supports 9.95 to 11.3Gb/s bit rates

2. Hot-Pluggable 30 pin connector

3. Compliant with XFP MSA
4.Transmission distance of 20km over Single mode fiber
5.1310nm DFB laser transmitter.
6.Duplex LC connector
7.2-wire interface for management and diagnostic monitor
8.XFI electrical interface with AC coupling
9.Single power supply voltages : +3.3V
10.Temperature range 0°C to 70°C
11.Power dissipation: <1.5W
12.RoHS Compliant Part



Applications:

10GBASE-LR/LW Ethernet
SONET OC-192 /SDH
1200-SM-LL-L 10G Fibre Channel
Other optical links



Optical Parameters:

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Operating Date Rate BR 9.95   11.3 Gb/s
Bit Error Rate BER     10-12
Maximum Launch Power PMAX -8.2   +0.5 dBm 1
Optical Wavelength λ 1260 1310 1355 nm
Optical Extinction Ratio ER 3.5     dB
Spectral Width@-20dB Δλ     1 nm
Sidemode Supression ratio SSRmin 30     dB
Rise/Fall Time (20%~80%) Tr/Tf     35 ps
Average Launch power of OFF Transmitter POFF     -30 dBm
Tx Jitter Txj Compliant with each standard requirements
Optical Eye Mask   IEEE802.3ae 2
Receiver
Operating Date Rate BR 9.95   11.3 Gb/s
Receiver Sensitivity Sen     -12.6 dBm 2
Maximum Input Power PMAX 0     dBm 2
Optical Center Wavelength λC 1260   1355 nm
Receiver Reflectance Rrx     -12 dB
LOS De-Assert LOSD     -13 dBm
LOS Assert LOSA -30     dBm
LOS Hysteresis LOSH 0.5   5 dB




Ordering information:

Dual Fiber SFP Transceiver
Part Number Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850 155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310 155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
FE-LX20-SM1310 155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310 155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550 155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550 155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850 1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310 1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310 1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310 1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550 1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550 1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550 1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR 10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM 10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR 10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM 10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER 10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR 10G SFP+ZR Single mode dual fiber LC 1550nm 80km
XFP Transceiver
XFP-10G-SR 10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM 10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR 10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER 10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR 10G XFP ZR Single mode dual fiber LC 1550nm 80km


Products Show:

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 0Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 1Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 2Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 3Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 4Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 5Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 6

Packing:

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 7

Shipping:



Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 8



Factory Show:

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 9



FAQ:

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 10

Our Advantages:

Duplex LC 10G XFP Transceiver 20km 1310nm Hot Pluggable 30 Pin Connector 11



Welcome to send us inquiry for this products.
