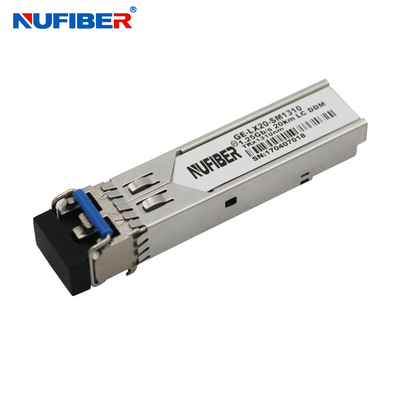

Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM

Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM

Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC
Model Number: GE-LX20-SM1310

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 10pcs/plastic bag, 200pcs/carton
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: 1.25Gbs SFP Transceiver Wavelength: TRX 1310nm
Distance: 0~20KM Connector: Duplex LC
DDM: Yes Fiber Type: Singlemode Dual Fiber
Compatibility: Mikrotik,Cisco, Huawei, HP,Aruba,Juniper Etc. Manufacturer: Yes
Working Temp.: 0~71℃ Warranty: 1 Year
High Light:

Duplex 1310nm 1.25G SFP Transceiver

,

20km LC DDM 1.25G SFP Module

,

1.25G SFP Module GLC-LHX-SM

Product Description

Hot sale GLC-LHX-SM 1.25G SFP Module Duplex 1310nm 20km LC DDM Compatible with Cisco



Key Features



  • Up to 1.25Gb/s Data Links
  • Hot-Pluggable
  • Duplex LC connector
  • Up to 20km on 9/125μm MMF
  • 131nm FP laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free



Applications

  • Metro/Access Networks
  • 1.25 Gb/s 1000Base-LX Ethernet
  • 1×Fiber Channel
  • Other Optical Links



Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)



Parameter Symbol Min. Typical Max. Unit Note
Transmitter Section:
Center Wavelength λc 1270 1310 1360 nm
Spectral Width(RMS) σRMS     3 nm
Optical Output Power Pout -9   -3 dBm 1
Extinction Ratio ER 8.2     dB
Optical Rise/Fall Time tr / tf     260 ps 2
Relative Intensity Noise RIN     -120 dB/Hz
Output Eye Mask Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength λc 1260   1360 nm
Receiver Overload Pol -3     dBm 4
RX Sensitivity Sen     -24 dBm 4
RX_LOS Assert LOS A -35     dBm
RX_LOS De-assert LOS D     -25 dBm
RX_LOS Hysteresis LOS H 0.5     dB
General Specifications:
Data Rate BR   1.25   Gb/s
Bit Error Rate BER     10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s LMAX   20   km
Total System Budget LB 15     dB


























































Ordering information

Model Description
GE-SX-MM850 1.25G MM Dual fiber 850nm SX DDM LC 0.5km
GE-SX-MM1310 1.25G MM Dual fiber 1310nm SX DDM LC 2km
GE-LX20-SM1310 1.25G SM Dual fiber 1310nm LX DDM LC 20km
GE-EX40-SM1310 1.25G SM Dual fiber 1310 DFB DDM LC 40km
GE-ZX80-SM1550 1.25G SM Dual fiber 1550 DFB DDM LC 80km
GE-ZX120-SM1550 1.25G SM Dual fiber 1550 DFB DDM LC 120km
GE-BX03-SM1310S 1.25G 1310nmTx/1550nmRx BIDI SMF SC 3KM
GE-BX03-SM1550S 1.25G 1550nmTx/1310nmRx BIDI SMF SC 3KM
GE-BX20-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 20KM
GE-BX20-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 20KM
GE-BX40-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 40KM
GE-BX40-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 40KM
GE-BX60-SM1310 1.25G 1310nmTx/1550nmRx BIDI SMF LC 60KM
GE-BX60-SM1550 1.25G 1550nmTx/1310nmRx BIDI SMF LC 60KM
GE-BX80-SM1310 1.25G 1490nmTx/1550nmRx BIDI SMF LC 80KM
GE-BX80-SM1550 1.25G 1550nmTx/1490nmRx BIDI SMF LC 80KM
GE-BX120-SM1490 1.25G 1490nmTx/1550nmRx BIDI SMF LC 120KM
GE-BX120-SM1550 1.25G 1550nmTx/1490nmRx BIDI SMF LC 120KM


Product Show



Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 0Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 1

Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 2

Packaing & Shipping

Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 3





Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 4



Factory Show

Duplex 1310nm 20km LC DDM 1.25G SFP Module GLC-LHX-SM 5
