Product Details:

Place of Origin: China
Brand Name: Nufiber
Certification: CE,FCC,Rohs
Model Number: NF-9802

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 10pairs/carton, carton size: 452*372*297mm
Delivery Time: within 1-3 work days after payment
Supply Ability: 5000 pairs per week
Get Best Price Contact Now

Detail Information

Product Name: Ethernet Over Twisted Pair Converter Color: Black
Material: Iron Interface: 2wire Port+ 1 RJ45 Port
Transmission Distance: 300M Signal: IP Signal Over Twisted Pair Cable
Bandwidth: 84M Power Adapter: DC: 52V/1.25A
Transmission Rate: 10/100Mbps POE Function: Support
Application: IPTV ,IP Network, IPC To NVR
High Light:

IP Camera 2 Wire EOC Extender

,

EOC Extender With External DC52V Power

,

IP Camera POE Extender

Product Description

IP over 2wire support POE for CCTV IP Camera 0-300meters with external DC52V power





NF-9802 IP Ethernet Over Coaxial Extender, 2 Wire Lan Extender with POE Function 0-300meters





Key Feature

1. Ethernet over 2-Wire - Converts Ethernet UTP to transmit network data and PoE over 2-Wire.

2. Saves costs and time – Avoids rewiring and expense of traditional Ethernet UTP cable.

3. High data rate – Support 100 Base-T for high network bandwidth requirements of Mega-pixel cameras or multiple IP cameras.

4. Easy to install - No IP or MAC address configuration and other networking setup required.

5. Easy upgrade to IP - Converts existing analog CCTV system over 2-Wire to retrofit analog CCTV installations into IP Digital systems.

6. Extends standard Ethernet – Transmits10/100Base-T up to distances of 300 meters

7. Compatible capability - Fully transparent to Ethernet networks and higher layer protocols.



Technical Parameter

Interface 10/100Base-TX IEEE 802.3af(15.4W) RJ45 ×1
2-Wire×1(Support POE/PSE-PD)
Transmission medium 2-Wire
LED Indicators PWR(Power supply) M/S(Links/Data) LRE(Trunk Links) POE(Power over Ethernet) L/A(Links/Data)
Protocol standard IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.3af DTE Power via MDI
Data rate 10/100Mbps
Transmission distance 1500M(No POE), 0~300M(with POE)
Performance Specification Store-and-forward
Network Latency Less than 20µs for 64-byte frames in Store and forward mode for 100Mbps to 100Mbps transmission
DC Power input DC52V(Peak Value 44~56V) , NF9802-PSE
No power, NF9802-PD
Operating environment Operating temperature; -10℃~ +50℃
Storage temperature: -20℃~ +70℃
Operating humidity: 10%-90% non-condensing
Dimension 118*85*29mm



Products Description

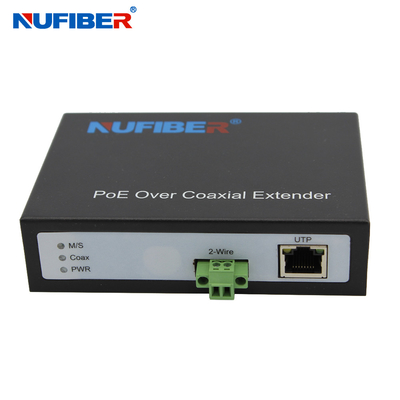

NNufiber NF-9802 Ethernet over 2-Wire Extender allows IP cameras to transmit over 2-Wire. It allows the system to extend IP cameras beyond cable distance limitations and also acts as a PoE inserter. The System transmits IP cameras over 2-Wire and can quickly turn any ordinary 2-Wire into a high speed network communication & PoE path. When operating over 2-Wire, the IP camera extender can operate for distances of up to 300 meters. NF-9802 Ethernet over 2-Wire extender system consists of a transmitter and receiver which require very little installation time & absolutely no set up or configuration.


Products Show

IP Camera 2 Wire POE EOC Extender With External DC52V Power 0

IP Camera 2 Wire POE EOC Extender With External DC52V Power 1IP Camera 2 Wire POE EOC Extender With External DC52V Power 2IP Camera 2 Wire POE EOC Extender With External DC52V Power 3IP Camera 2 Wire POE EOC Extender With External DC52V Power 4









Connection Diagram

IP Camera 2 Wire POE EOC Extender With External DC52V Power 5



Packing & Shipping

IP Camera 2 Wire POE EOC Extender With External DC52V Power 6

IP Camera 2 Wire POE EOC Extender With External DC52V Power 7

Factory Show

IP Camera 2 Wire POE EOC Extender With External DC52V Power 8



FAQ

IP Camera 2 Wire POE EOC Extender With External DC52V Power 9



Welcome to send us your inquiry,your any question will be response 24/7.OEM:accept Customization:support.
