Product Details:

Place of Origin: China
Brand Name: NuFiber
Certification: CE FCC ROHS
Model Number: NF-1802

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: 27pcs per caton, carton size: 550*320*320mm
Delivery Time: 1-3 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pairs per month
Get Best Price Contact Now

Detail Information

Material: Iron Case Color: Black
Transmission Media: Twisted-pair Cable/Telephone Wire Distance: 0-2KM
BNC Port: 1 RJ45 Ports: 1
POE Function: Support Power Supply: 12VDC
OEM: Accepted Size: 119mm*113mm*29mm
High Light:

Twisted Pair RJ45 To BNC Converter

,

2 Wire RJ45 To BNC Converter

,

RJ45 To BNC Twisted Pair Converter

Product Description

NF-1802 IP Ethernet Over 2 Wire Cable Extender IP Twisted Pair Extender RJ45 To BNC Converter

Description

NuFiber® NF-1802 is the high-performance Ethernet-over-twisted pair extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the NF-1802 uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the NF-1802 utilizes a twisted-pair connector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.

Features

(1) High Transmission Speed



Physical Port transmission rate up to 200Mbps.

Valid data flowing rate up to 80Mbps

Transmission distance up to 2KM

Supply 10/100Mbps 1-port Ethernet interface and 1-port twisted-pair interface



(2) High compatibility

Support QAM 16/64/256/1024, DQPSK,DBPSK and ROBO modulation technology.

Support conformability transmission QoS, Multi cast and IGMP.



(3) High security

Adopt 128bits AES data encryption and Key management.

Adopt Peer-to-peer network framework

Plug and Play (without any setting)

Parameter



Interface 10/100Base-TX UTP port (Auto-adaptation ) ×1
twisted-pair×1
Transmission medium Twisted pair cable
Modulation technique OFDM
LED Indicators

Power: Light on: Normal operation

Coax: Light on: Video signal is normal

UTP, Act/Link: Light on: connection is correct

Light Blink: normal communication

M(master)/S(slave) : Light on: Under Slave

Light off: Under Master

Transmission band 2MHz–28MHz
Protocol standard IEEE 802.3, IEEE 802.3u
Dimensions (W x D x H) 95*70*25mm
Power supply DC 12V 1A
Security technology 128-DES Data encryption and Key management
Physical layer transmission rate 200Mbps
Transmission distance 2KM
Support operating system Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux
Operating voltage range AC 100V-240V 60/50Hz
Operating environment Operating temperature; 0°C ~ +50°C
Storage temperature: -20°C ~ +70°C
Operating humidity: 5%-90%

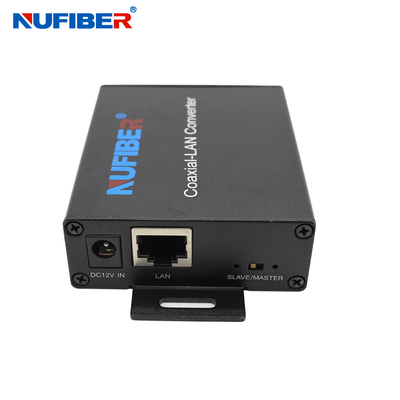

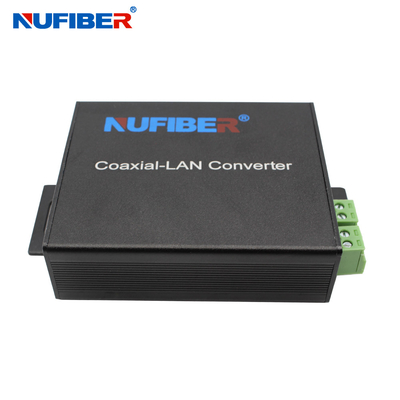

Products Show

Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 0Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 1Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 2Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 3

Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 4









Connection Diagram

Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 5



Company Information

Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 6



FAQ

Ethernet Over 2 Wire Twisted Pair RJ45 To BNC Converter 7
