Product Details:

Place of Origin: China
Brand Name: Nufiber
Certification: CE FCC
Model Number: QSFP-40G-LR-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: 10pcs/plastic bag, 200pcs/carton
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Piece/Week
Get Best Price Contact Now

Detail Information

Data Rate: 40Gb/s Wavelength: 1310nm
Distance: 10Km Connector: MPO
Fiber Type: SMF Power Supply: 3.3V
Operating Temperature: 0~70℃ Warranty: 12 Months
Manufacturer: Yes OEM: Support
High Light:

10KM MPO 40G QSFP+ Transceiver

,

40G QSFP+ Transceiver Compatible Cisco

Product Description

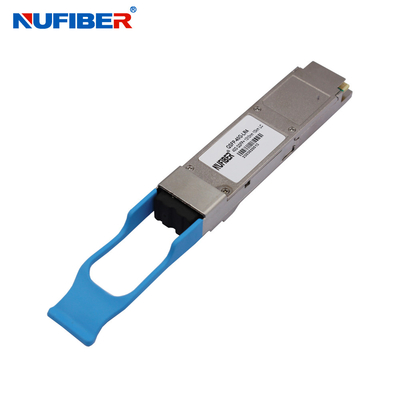

QSFP-40G-LR-S 1310NM 10KM MPO 40G QSFP+ Transceiver Compatible Cisco Huawei



Product Description:



This is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 10km on singlemode 1310nm MPO cable





Features:

  • 4 independent full-duplex channels
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 10km transmission single mode 1310nm MPO cable
  • CML compatible electrical I/O
  • Single +3.3V power supply operating
  • TX input and RX output CDR retiming
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part



Applications:

² Rack to rack

² Data centers

² Metro networks

² Switches and Routers

² Infiniband 4x SDR, DDR, QDR



Ordering Information:


QSFP-40G-SR4 40Gb/s 150m MPO/MTP Connector, Multi mode, 850nm
QSFP-40G-LR4 40Gb/s 10km Duplex LC Connector, Single mode, 1270-1330nm

QSFP-40G-ER4

40Gb/s 40km Duplex LC Connector, Single mode, 1270-1330nm
QSFP-40G-LR-S 40Gb/s 2km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LR-S 40Gb/s 10km PSM4 MPO Connector, Single mode, 1310nm
QSFP-40G-LX4 40Gb/s 150m Duplex LC Connector, Multi mode(OM3), 1270-1330nm
QSFP-40G-LX4 40Gb/s 2km Duplex LC Connector, Single mode, 1270-1330nm
