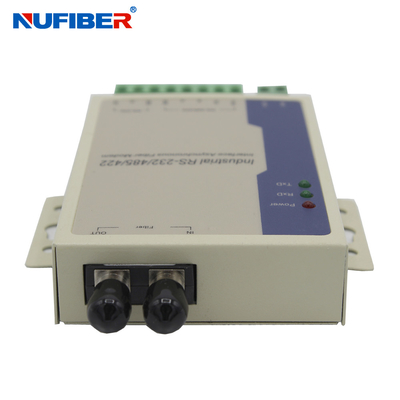

OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem

OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem

Product Details:

Place of Origin: Shenzhen, China ( mainland)
Brand Name: Nufiber
Certification: CE
Model Number: GM168SM-T20

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: Carton packaging, the products are packed in international standard. Each carton is lined with a polythene sheet, thus preventing the cartons from dampness
Delivery Time: 1-3 working days after payment
Payment Terms: T/T, Western Union, credit card
Supply Ability: 10000 pairs per month
Get Best Price Contact Now

Detail Information

Fiber Type: MM Duplex Distance: 2km
Interface: RS232/422/485 Fiber Connector: ST/SC.FC
Warranty: 3 Years
High Light:

ODM Serial To Fiber Converter

,

Serial To Fiber Converter 20km

,

Duplex 20km Fiber Optic Modem

Product Description

Serial to Fiber Converter RS485/422/232 Fiber Modem SM Duplex 20km GM168SM-T20

Overview

Model 168 is a sort of more function and economy RS-232/485/422 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the scurviness environment.

Function and Characteristic

a) Support RS-232/RS-485/RS-422 interface
b) Asynchronous, point to point, rate up to 120Kbps
c) Support 9V~40V DC Volt input, consumption 2W
d) 1500W surge protection, 15KV static protection
e) RS-485/422 port support 32 node ( can choice hand-tailor 128 Node)
f) Working wavelength: 1310nm
g) Auto test signal rate, zero delay auto transmit

Performance guideline

Interface: support EIARS-232, 485, 422 standard
Rate: 0-500Kbps
Transmit distance: RS-232 port 15m, RS-485/422 port 1500m, optical port multi-mode 2KM, single-mode 20KM
Working environment: 0℃ to 60℃

Appearance guideline

Interface type: 8 bit terminal block, multi-mode choice ST/SC/FC interface, single-mode choice FC/SC/ST interface
L*W*H: 100mm*69mm*22mm
Shell: Iron
Color: White
Weight: 230g

Pin define

Power interface
GND --------- Ground
DCIN --------- 9-40V input
Optical fiber interface
IN --------- Optical fiber input
OUT --------- Optical fiber output
RS-485/422 port
T+/D+ --------- RS-422 Send +/ RS-485 +
T-/D- --------- RS-422 Send -/ RS-485-
R+ --------- RS-422 Received +
R- -------- RS-422 Received –
GND --------- Ground
RS-232 port
IN --------- RS-232 input
OUT --------- RS-232 output
GND --------- Ground

Indicator light explain

Power: Power indication
RxD: Optical fiber interface receive indication
TxD: Optical fiber interface send indication

Applications
OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem 0

Products
OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem 1OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem 2OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem 3OEM ODM Serial To Fiber Converter SM Duplex 20km Fiber Optic Modem 4

Ordering information



Model No.


Specification


GM168MM-C2


RS232/485/422 TO FIBER,Multimode dual
fiber,2KM,SC


GM168SM-C20


RS232/485/422 TO FIBER,Single mode dual fiber,20KM,SC


GM168SM-C40


RS232/485/422 TO FIBER,Single mode dual fiber,40KM,SC


GM168SM-C20/B1B2


RS232/485/422 TO FIBER,Single mode single fiber,20KM,SC


GM168SM-C40/B1B2


RS232/485/422 TO FIBER,Single mode single fiber,40KM,SC
